Navigation Signal Splitter Replacement Entertainment

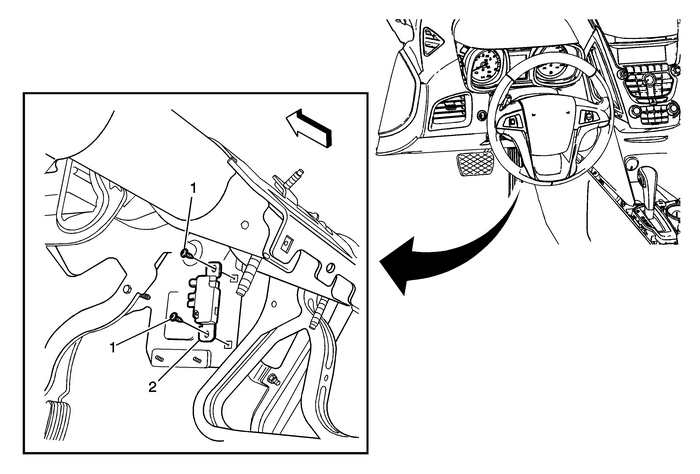

Navigation Signal Splitter Replacement

Callout

Component Name

Preliminary Procedure

Remove the driver side knee bolster reinforcement. Refer toDriver Knee Bolster Reinforcement Replacement

Navigation Signal Splitter Bolt (Qty:-2)

Caution:Refer toFastener Caution.

Tighten

9-Y(80-lb-in)

Navigation Signal Splitter

Procedure

Disconnect the electrical connections.
