Mass Airflow Sensor with Intake Air Temperature Sensor Replacement Engine Control Engine Control Sensors MAF/Airflow Sensor

Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

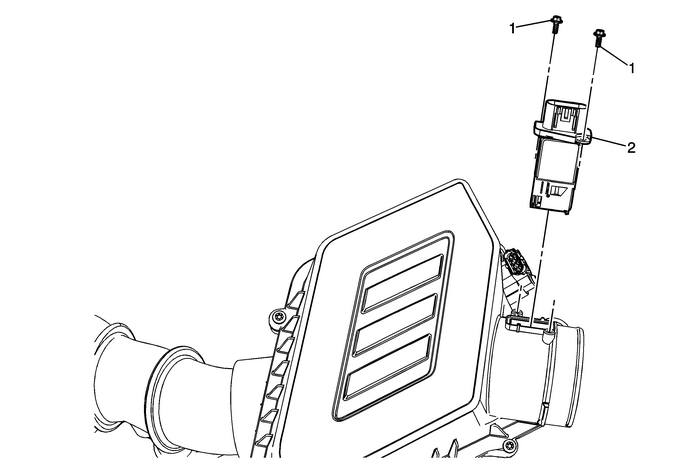

Callout

Component Name

1

Mass Airflow Sensor Fastener (Qty:-2)

Caution:Refer toFastener Caution.

Tighten

3-Y (27-lb-in)

2

Mass Airflow Sensor with Intake Air Temperature Sensor

Procedure

Disconnect the electrical connector.
