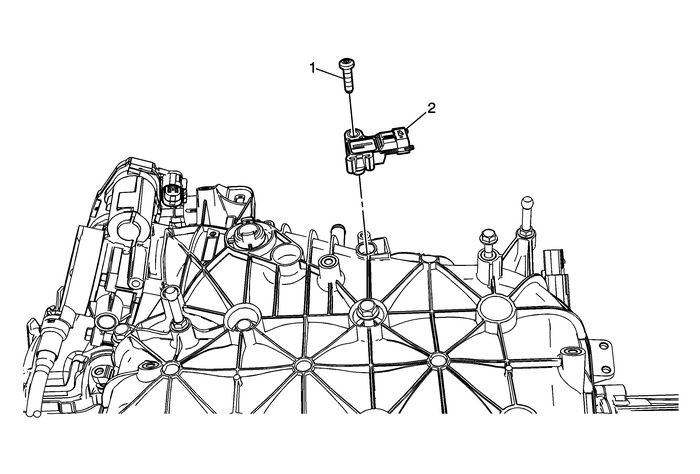

Manifold Absolute Pressure Sensor Replacement

Callout

Component Name

Preliminary Procedure

Remove the intake manifold cover. Refer toIntake Manifold Cover Replacement.

Manifold Absolute Pressure Sensor Fastener

Caution:Refer toFastener Caution.

Tighten

5-Y (44-lb-in)

Manifold Absolute Pressure Sensor

Procedure

Disconnect the electrical connector.
