Liftgate Weatherstrip Replacement Panels

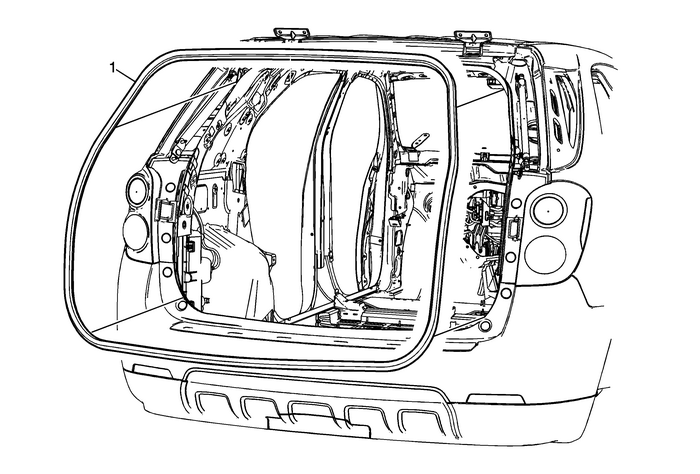

Liftgate Weatherstrip Replacement

Callout

Component Name

1

Liftgate Weatherstrip

Procedure

Clean the area where the seal will be mounted. Use a suitablesolvent with a mixture of 50-percent isopropyl alcoholand 50-percent water by volume, or high-flashnaphtha.
