Liftgate Upper Weatherstrip Replacement Panels

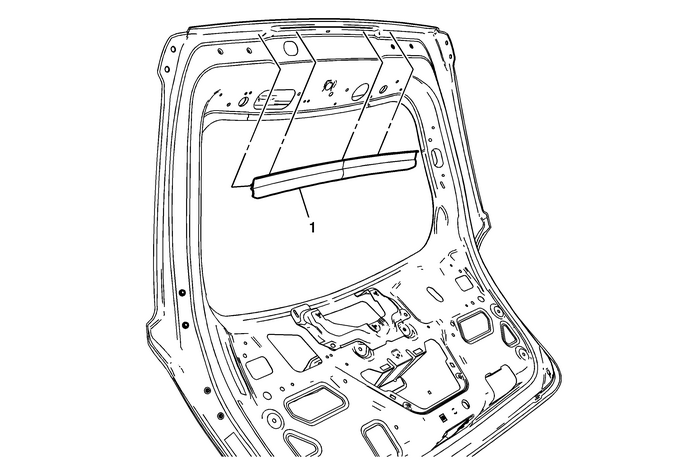

Liftgate Upper Weatherstrip Replacement

Callout

Component Name

1

Liftgate Upper Weatherstrip

ProcedureClean the area where the liftgate upper weatherstrip will bemounted. Use a suitable solvent with a mixture to50-percent isopropyl alcohol and 50-percentwater by volume, or high-flash naptha.Apply thumb pressure to the liftgate upper weatherstrip toensure the weatherstrip is fully seated into the retainer.
