Liftgate Replacement Panels

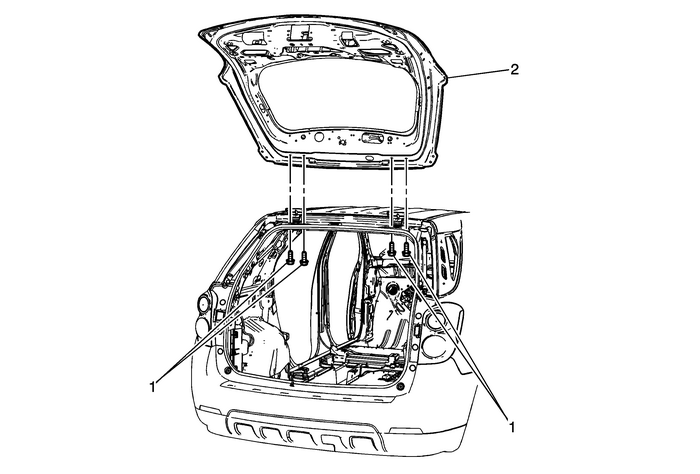

Liftgate Replacement

Callout

Component Name

Preliminary ProceduresDisconnect the battery. Refer toBattery Negative Cable Disconnection and Connection.Disconnect the liftgate actuator from the liftgate. Refer toLiftgate Hydraulic Actuator Replacement.Disconnect the liftgate strut. Refer toLiftgate Strut Replacement.Disconnect the electrical connectors.

1

Liftgate Hinge Bolt (Qty:-4)

Caution:Refer toFastener Caution.

Tighten

25-Y(18-lb-ft)

2

Liftgate

ProcedureTransfer parts as needed.Adjust the liftgate if needed.
Liftgate Hinge Replacement Panels
Liftgate Hinge ReplacementCalloutComponent NamePreliminary ProceduresRemove the liftgate. Refer toLiftgate Replacement.Lower the rear of the headliner to access the inner bolts.Refer toHeadlining Trim ...

Liftgate Strut Replacement Panels
Liftgate Strut ReplacementCalloutComponent Name1Liftgate Strut RodWarning:When a lift gate hold open device is being removed orinstalled, provide alternate support to avoid the possibility ofdamage to ...
