Preliminary Procedure Raise and support the vehicle. Refer toLifting and Jacking the Vehicle. | |

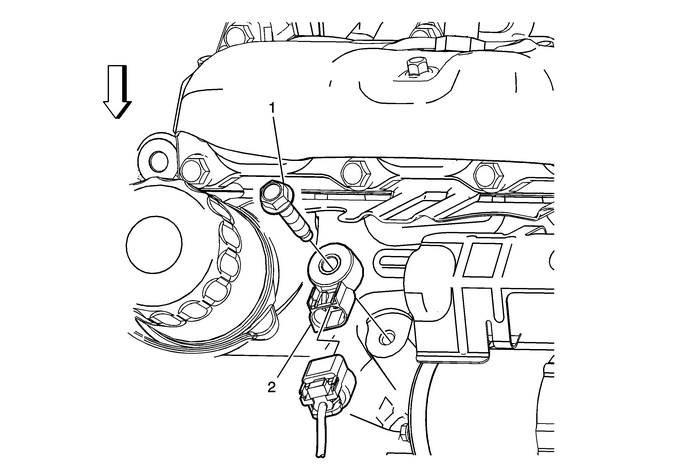

1 | Knock Sensor Fastener Caution:Refer toFastener Caution. Tighten25-Y (18-lb-ft) |
2 | Knock Sensor Procedure Disconnect the electrical connector. |
