Knock Sensor Replacement - Bank 1 Engine Control Engine Control Sensors Knock Sensor

i..\

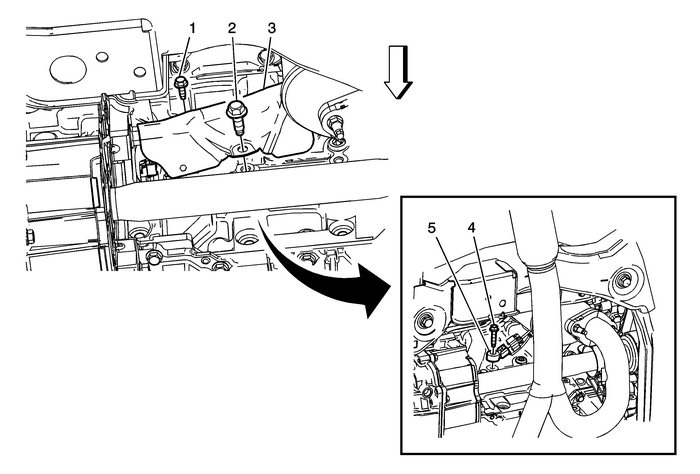

Knock Sensor Replacement - Bank 1

Callout

Component Name

Preliminary ProceduresIf equipped with AWD, remove the right side catalytic converter. Refer toCatalytic Converter Replacement - Right Side.Raise and support the vehicle. Refer toLifting and Jacking the Vehicle.

1

Bolt

Caution:Refer toFastener Caution.

Tighten

10-Y (89-lb-in)

2

Bolt

Tighten

58-Y (42-lb-ft)

3

Exhaust Manifold Lower Heat Shield

4

Bolt

Tighten

25-Y (18-lb-ft)

5

Knock Sensor

Procedure

Disconnect the electrical connector.
