Instrument Panel Compartment Door Latch Replacement Consoles Center Console

Instrument Panel Compartment Door Latch Replacement

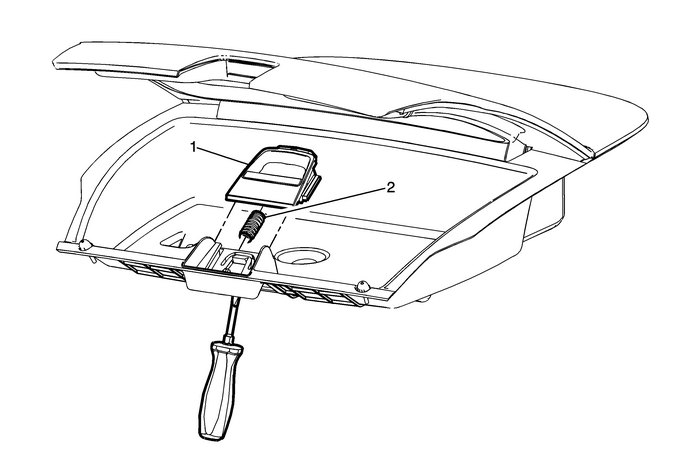

Callout

Component Name

Preliminary Procedure

Remove the instrument panel center compartment. Refer toInstrument Panel Center Compartment Replacement.

1

Instrument Panel Center Compartment Latch Assembly

ProcedureUse a small flat bladed tool and push up on the bottom of thelatch assembly until the latch clears the retainer tab.Slide the latch assembly forward, out of the compartmentassembly.

2

Instrument Panel Center Compartment Latch Spring
