Instrument Panel Compartment Door Dampener Replacement (Terrain) Consoles Center Console

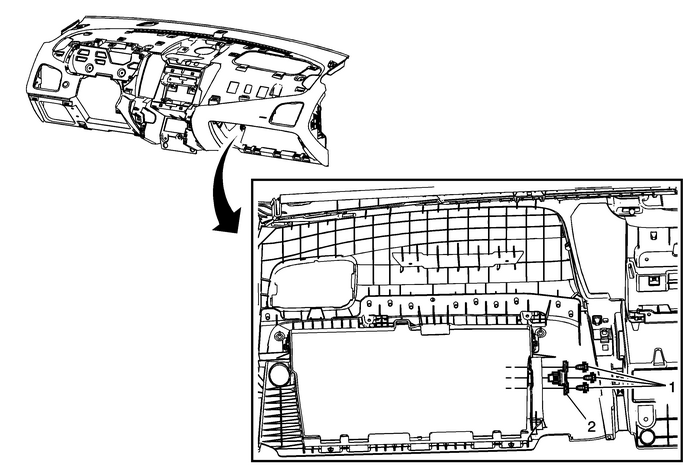

Instrument Panel Compartment Door Dampener Replacement

Callout

Component Name

Preliminary ProcedureRemove the instrument panel compartment door assembly. RefertoInstrument Panel Compartment Door Replacement.Remove the right instrument panel center air outlet. Refer toInstrument Panel Center Air Outlet Replacement.

1

Instrument Panel Compartment Door Dampener Fasteners(Qty:-3)

Caution:Refer toFastener Caution.

Tighten

2.5-Y(22-lb-in)

2

Instrument Panel Compartment Door Dampener

Instrument Panel Cluster Trim Plate Bezel Replacement Consoles Center Console
Instrument Panel Cluster Trim Plate Bezel ReplacementCalloutComponent NamePreliminary ProcedureRemove the instrument panel cluster trim pad. Refer toInstrument Panel Cluster Trim Pad Replacement.1Inst ...

Instrument Panel Compartment Door Latch Replacement Consoles Center Console
Instrument Panel Compartment Door Latch ReplacementCalloutComponent NamePreliminary ProcedureRemove the instrument panel center compartment. Refer toInstrument Panel Center Compartment Replacement.1In ...
