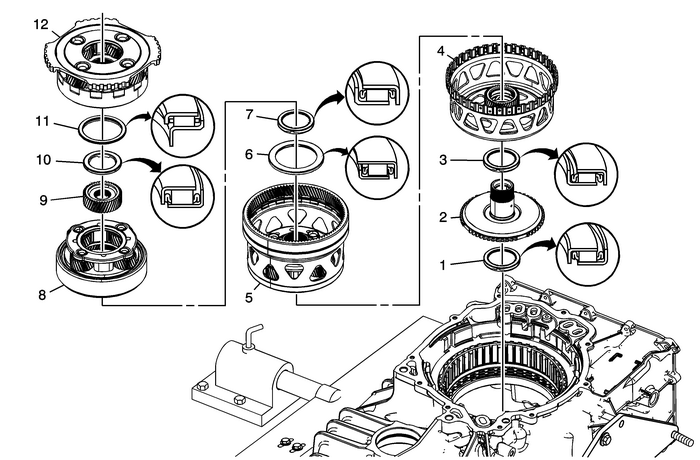

Preliminary Procedure Note location of the orientation lip on bearings. All thrustbearings can only be assembled one way. | |
1 | Input Shaft Thrust Bearing Assembly |
2 | Output Carrier Transfer Drive Gear Hub Assembly |
3 | Front Differential Transfer Drive Gear Input Hub BearingAssembly |
4 | Output Sun Gear Assembly |
5 | Output Carrier Assembly |
6 | Output Carrier Thrust Bearing Assembly |
7 | Output Carrier Thrust Bearing Assembly |
8 | Input (w/Output Internal Gear) Carrier Assembly |
9 | Input Sun Gear |
10 | Input Sun Gear Thrust Bearing Assembly |
11 | Input Carrier Thrust Bearing Assembly |
12 | Reaction (w/Input Internal Gear) Carrier Assembly |
Front Wheel Speed Sensor Replacement Sensors Wheel Speed Sensors
Removal ProcedureWarning:Refer toBrake Dust Warning.Raise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the tire and wheel assembly. Refer toTire and Wheel Removal and Installation.Disconnect the wheel speed sensor electricalconnector.Remove the front brake hose bracketnut- ...
