Hood Rear Weatherstrip Replacement Weatherstripping

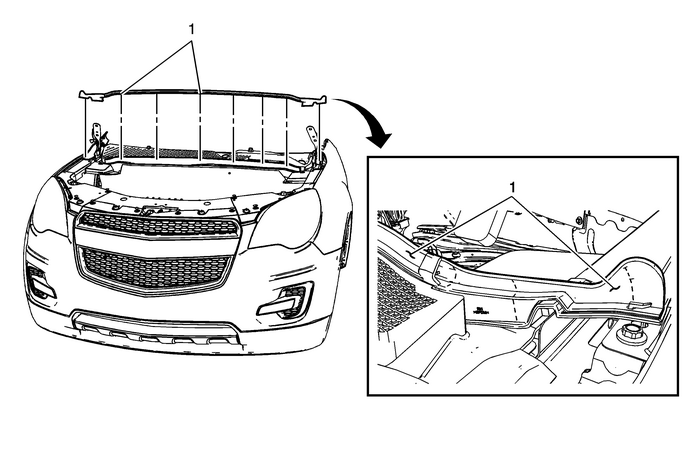

Hood Rear Weatherstrip Replacement

Callout

Component Name

1

Hood Rear Weatherstrip

Procedure

The hood rear weatherstrip is held in place with 14 plasticretainers that are part of the weatherstrip. Carefully pull theweatherstrip to the right/left to release from the retainers on theair inlet grille.
