Hood Primary and Secondary Latch Replacement Panels

Hood Primary and Secondary Latch Replacement

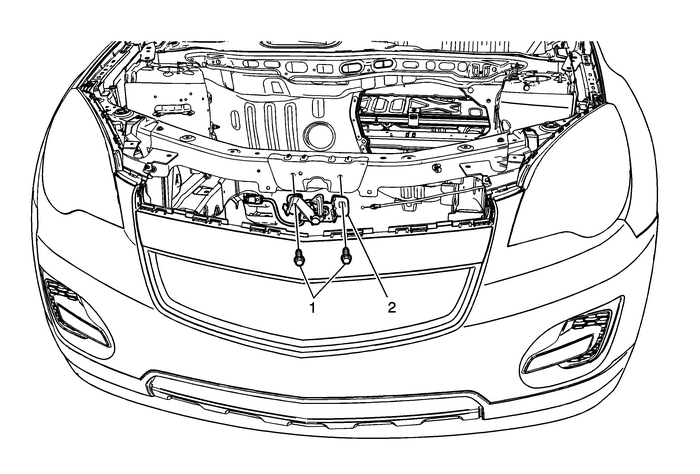

Callout

Component Name

1

Hood Primary and Secondary Latch Bolt (Qty:-2)

Caution:Refer toFastener Caution.

ProcedureMark location of hood latch to avoid need to realign after installation.Reach under the plastic panel with appropriate tool to disconnect the electrical connectorretainer.Reach under the radiator support bar to disconnect the electrical connector.Remove the 2 latch bolts.Tighten

25-Y (18-lb-ft)

2

Hood Primary and Secondary Latch

Procedure

Pull the hood latch out and disconnect the hood release cable.
