Hood Front Seal Replacement Weatherstripping

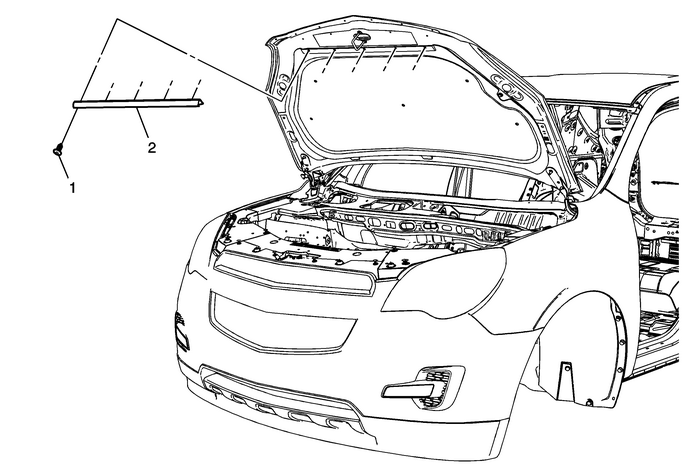

Hood Front Seal Replacement

Callout

Component Name

1	Hood Front Seal Push-In Retainer (Qty:-5)
2	Hood Front Seal
