Generator Replacement (LEA) Starting System

Generator Replacement

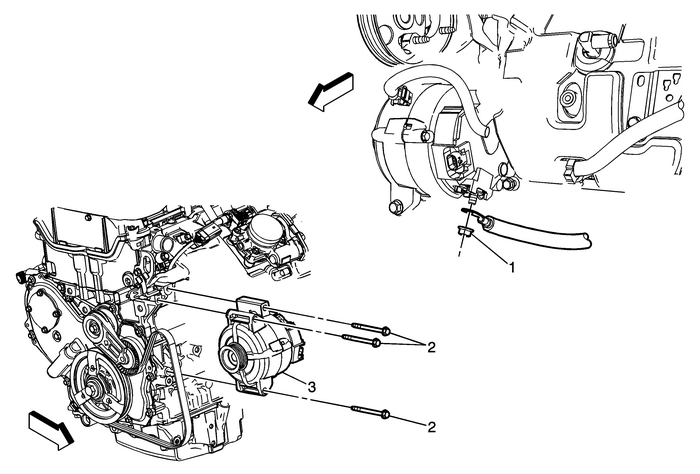

Callout

Component Name

Preliminary ProceduresDisconnect the negative battery cable. Refer toBattery Negative Cable Disconnection and Connection.Remove the drive belt. Refer toDrive Belt Replacement.Disconnect the engine harness generator connector.
1	Generator Battery Positivel Nut Caution:Refer toFastener Caution Tighten 20-Y(15-lb-ft)
2	Generator Bolt (QTY:-3) Tighten 22-Y(16-lb-ft)
3	Generator
