Fuel Tank Fuel Pump Module Fuel Level Sensor Replacement Engine Control

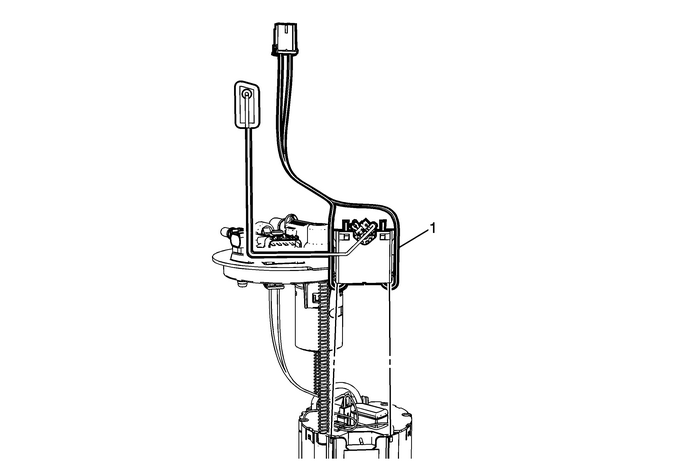

Fuel Tank Fuel Pump Module Fuel Level Sensor Replacement

Callout

Component Name

Preliminary Procedure

Remove the fuel pump module. Refer toFuel Tank Fuel Pump Module Replacement.

Fuel Level Sensor

ProcedureRelease the retaining tabs.Disconnect the electrical connector.

Fuel Tank Filler Pipe Replacement Engine Control

Fuel Tank Filler Pipe ReplacementCalloutComponent NamePreliminary ProcedureRemove the rear wheel house liner. Refer toRear Wheelhouse Liner Replacement.Disconnect the evaporative emission lines. Refer ...

Fuel Tank Pressure Sensor Replacement (NU6) Engine Control Engine Control Sensors Fuel Tank Pressure Sensor

Fuel Tank Pressure Sensor ReplacementCalloutComponent NamePreliminary ProcedureRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.1Fuel Tank Pressure SensorProcedureUse a flat blad ...
