Fuel Injection Fuel Rail Assembly Replacement Engine Control

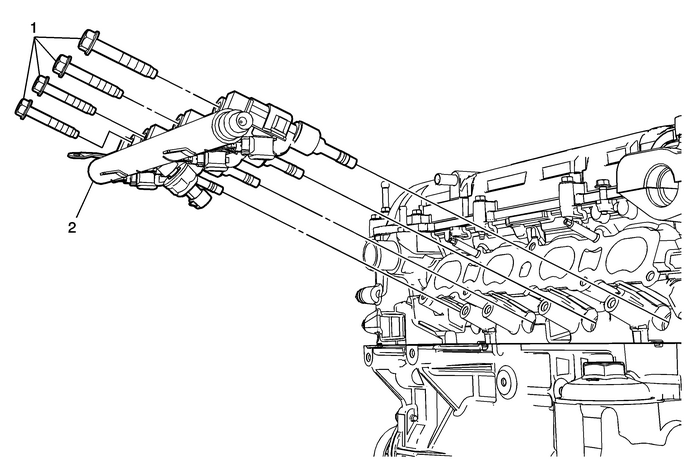

Fuel Injection Fuel Rail Assembly Replacement

Callout

Component Name

Preliminary ProceduresRelieve the fuel system pressure. Refer toFuel Pressure Relief.Remove the intake manifold. Refer toIntake Manifold Replacement.

1

Fuel Injection Fuel Rail Fastener (Qty: 4)

Caution:Refer toFastener Caution.

Tighten

25Y (18-lb-ft)

2

Fuel Injection Fuel Rail

ProcedureDisconnect the electrical connector.It is necessary to rebuild the fuel injectors. Refer toDirect Fuel Injector Replacement.
