Fuel Feed Intermediate Pipe Replacement

Callout

Component Name

Preliminary ProceduresRelieve the system pressure. Refer toFuel Pressure Relief.Remove the fuel pump cover. Refer toFuel Pump Cover Replacement.

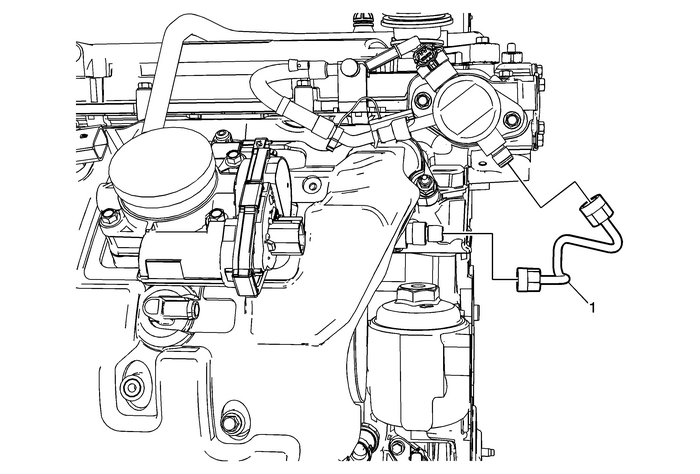

Fuel Feed Intermediate Pipe

Caution:Refer toFastener Caution.

ProcedureDISCARD the pipe when removed, and install a NEW pipe.Lubricate the pipes with silicon free engine oil. Refer toAdhesives, Fluids, Lubricants, and Sealers.Pressurize the fuel system and inspect for leaks.Tighten

30-Y (22-lb-ft)

Note:The pipe fittings are a one time use, always install a NEW fuel pump intermediatepipe.

Fuel Feed Intermediate Pipe Replacement Engine Control

Fuel Feed Intermediate Pipe ReplacementCalloutComponent NamePreliminary ProceduresRelieve the fuel system pressure. Refer toFuel Pressure Relief.Remove the Intake manifold cover. Refer toIntake Manifo ...

Fuel Feed Pipe Replacement Engine Control

Fuel Feed Pipe ReplacementCalloutComponent NamePreliminary ProceduresRelieve the fuel system pressure. Refer toFuel Pressure Relief.Remove the intake manifold cover. Refer toIntake Manifold Cover Repl ...
