Chevrolet Equinox Service Manual: Fuel Feed Hose Replacement Engine Control

Fuel Feed Hose Replacement Engine Control

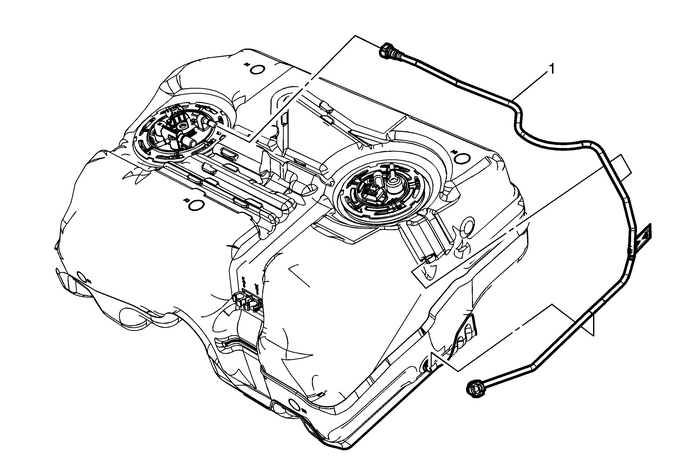

Fuel Feed Hose Replacement

Callout

Component Name

Preliminary ProceduresRelieve the fuel system pressure. Refer toFuel Pressure Relief.Raise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the fuel tank. Refer toFuel Tank ReplacementDisconnect the quick connectors. Refer toPlastic Collar Quick Connect Fitting Service.

1

Fuel Feed Hose

Procedure

Disengage the hose from the plastic retainers.
