Front Seat Belt Guide Adjuster Replacement Primary Seat Belts

Front Seat Belt Guide Adjuster Replacement

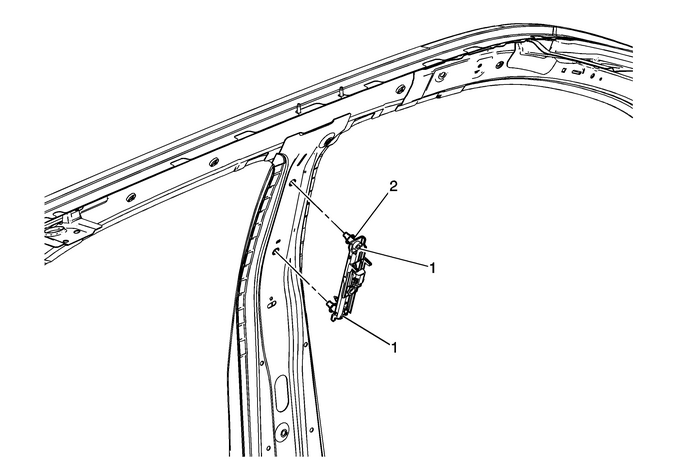

Callout

Component Name

Preliminary ProceduresDisable the SIR system. Refer toSIR Disabling and Enabling.Remove the center pillar upper trim. Refer toCenter Pillar Upper Trim Panel Replacement.Remove the front seat retractor side belt fastener. Refer toDriver or Passenger Seat Retractor Side Belt Replacement.

Front Seat Shoulder Belt Guide Adjuster Bolt(Qty:-2)

Caution:Refer toFastener Caution.

Tighten

45-Y-(33-lb-ft)

Front Seat Shoulder Belt Guide Adjuster Assembly
