Front Seat Back Cushion Finish Panel Replacement Seats Front

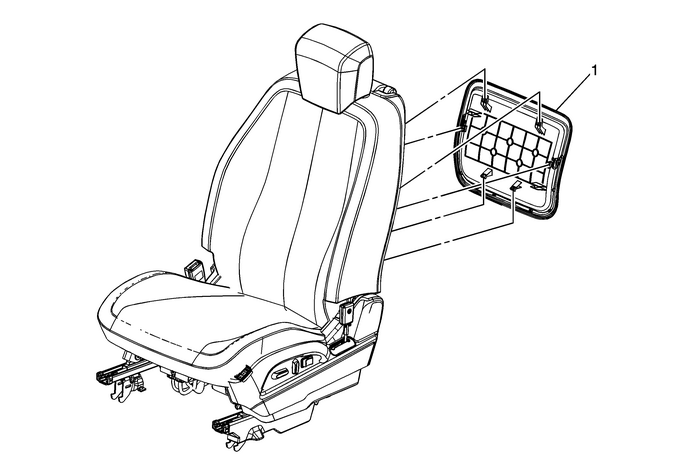

Front Seat Back Cushion Finish Panel Replacement

Callout

Component Name

1

Driver or Passenger Seat Back Cushion Finish Panel

ProcedurePull the panel rearward at the bottom edge first to disengagethe lower retainers.Move the finish panel and side clips to one side to disengagethe panel from the seat frame.Slide the panel downward to release the upper hooks from theseat back cushion pad support wire.
Front Seat Adjuster Knob Replacement Seats Front
Front Seat Adjuster Knob ReplacementCalloutComponent Name1Front Seat Adjuster Switch KnobTip:Use a flat-bladed tool to release the adjuster knob from theswitch. ...

Front Seat Back Recliner Handle Replacement Seats Front
Front Seat Back Recliner Handle ReplacementCalloutComponent Name1Driver or Passenger Seat Recliner HandleProcedurePull upward on the recliner handle in a north and southdirection, with out reclining t ...

Other materials:

Control Valve Body Assembly Disassemble (Gen 2) Automatic Transmission Unit Control Valve Body
Control Valve Body Assembly DisassembleCalloutComponent Name1Control Solenoid Valve Support2Control Valve Body Bolt-M5-x-40.5-(Qty:-1)3Valve Channel PlateNote:Inspect the channel plate bolt pass through holes for damage or brinelling. Any damagewill cause incorrect pressure switch operation. Replace ...
