Special Tools

EN 43653Flywheel Holding Tool

For equivalent regional tools, refer toSpecial Tools

Crankshaft Balancer Removal Engine Block Cylinder Block Crankshaft

/_iv,:

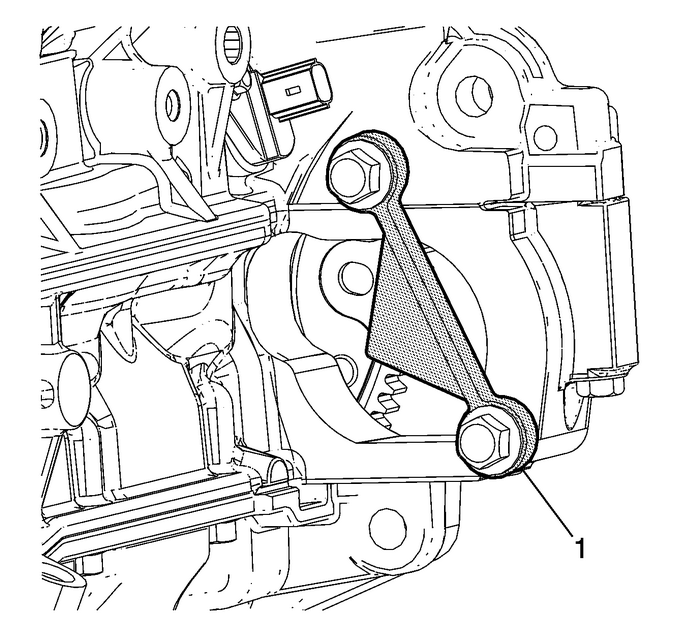

InstallEN 43653holding tool-(1) in the starter assembly location, engagingthe flywheel, in order to prevent crankshaft rotation.

Crankshaft Balancer Removal Engine Block Cylinder Block Crankshaft

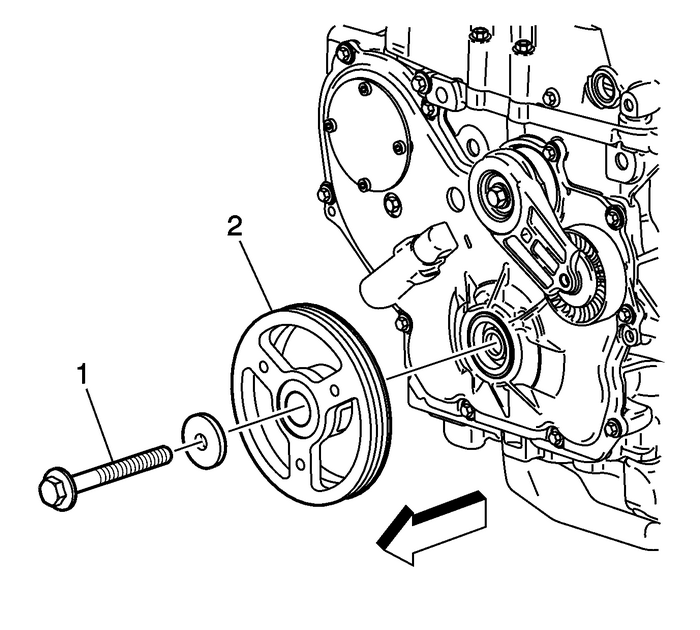

Remove the balancer retaining bolt-(1) and washer.Discard the bolt.Remove the balancer-(2) using a universal removaltool.
