Chevrolet Equinox Service Manual: Front Floor Panel Carpet Replacement Floorlining and Carpets

Chevrolet Equinox Service Manual / Body / Body Interior / Front Floor Panel Carpet Replacement Floorlining and Carpets

Front Floor Panel Carpet Replacement Floorlining and Carpets

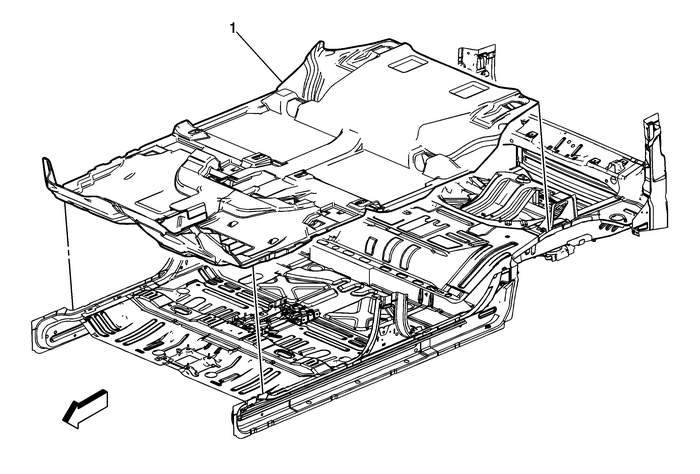

Front Floor Panel Carpet Replacement

Callout

Component Name

Preliminary ProceduresRemove the front seats. Refer toDriver or Passenger Seat Removal and Installation.Remove the rear seats. Refer toRear Seat Removal and Installation.Remove the body hinge pillar trim panel. Refer toBody Hinge Pillar Trim Panel Replacement.Remove the rear side door opening floor retainer. Refer toRear Side Door Opening Floor Carpet Retainer Replacement.Remove the front floor console. Refer toFront Floor Console Replacement.Remove the lower center pillar garnish molding. Refer toCenter Pillar Lower Trim Panel Replacement.

1

Front Floor Panel Carpet Assembly

Tip:Remove the floor carpet by pulling the carpet from under thecenter pillar assemblies and lifting the carpet out of thevehicle.

Front Floor Lower Console Side Finish Cover Replacement - Right Side (Terrain) Consoles Center Console
Front Floor Lower Console Side Finish Cover Replacement - Right SideCalloutComponent NamePreliminary ProcedureMove the right front seat to the full rearwardposition.1Push Pin Fastener2Front Floor Lowe ...

Front Side Door Accessory Switch Mount Plate Replacement Trim Panels/Welts
Front Side Door Accessory Switch Mount Plate ReplacementCalloutComponent Name1Front Side Door Accessory Switch Mount PlateProcedureDisconnect the electrical connector from the switchassembly.Transfer ...
