Front Floor Console Compartment Door Latch Replacement Doors Door Assembly Latch and Striker

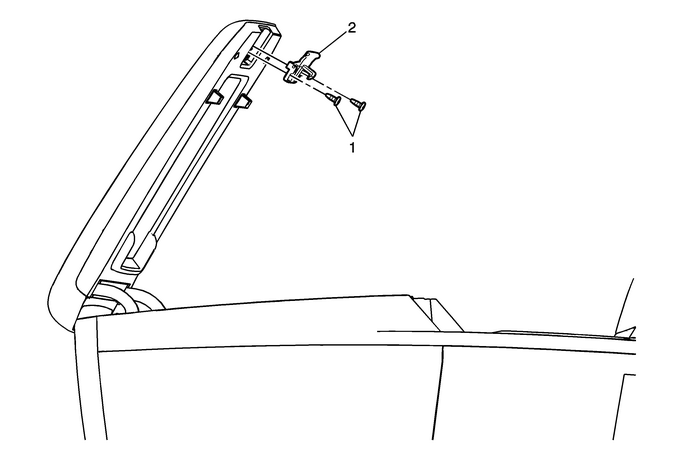

Front Floor Console Compartment Door Latch Replacement

Callout

Component Name

1

Front Floor Console Compartment Door Latch Fasteners(Qty:-2)

Caution:Refer toFastener Caution.

Tighten

2.5-Y(22-lb-in)

2

Front Floor Console Compartment Door Latch
