Front Bumper Fascia Bracket Replacement Bumpers Front Bumper

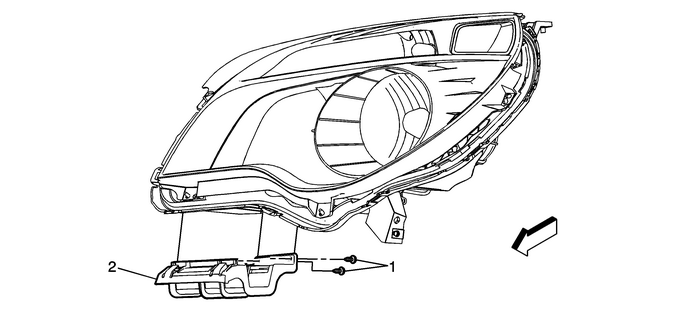

Front Bumper Fascia Bracket Replacement

Callout

Component Name

Preliminary Procedure

Remove the headlamp assembly. Refer toHeadlamp Replacement.

1

Front Bumper Fascia Bracket Assembly Screw(Qty:-2)

Caution:Refer toFastener Caution.

Hand tighten the screws.

2

Front Bumper Fascia Bracket Assembly

Tip:Detach the front bumper fascia bracket from the bottom of theheadlamp assembly.
