Warning
If a floor mat is the wrong size or
is not properly installed, it can
interfere with the pedals. Interference with the pedals can cause unintended acceleration and/or increased stopping distance which can cause a crash and injury. Make sure the floor mat does not interfere with the pedals. |
Use the following guidelines for proper floor mat usage.
Removing and Replacing the Floor Mat

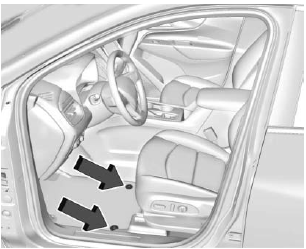

The driver side floor mat is held in place by two retainers.
Verify the floor mat does not interfere with the pedals.
