Chevrolet Equinox Service Manual: Floor Air Outlet Replacement - Center

Chevrolet Equinox Service Manual / HVAC / Cooling / Floor Air Outlet Replacement - Center

Removal Procedure

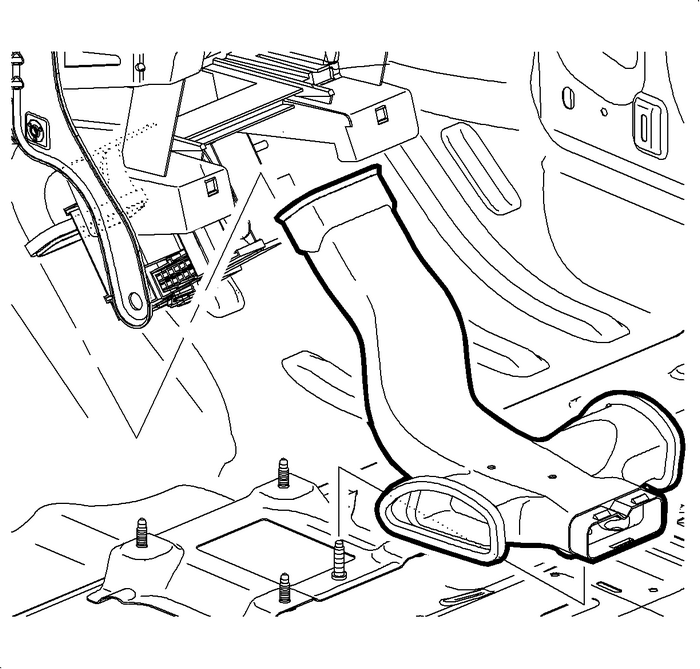

Floor Air Outlet Replacement - Center

Remove the front floor console. Refer toFront Floor Console Replacement.Slide the center floor air outlet duct forward enough toclear the rear floor air outlet duct, and then up, and rearward toremove.Installation Procedure

Floor Air Outlet Replacement - Center

Slide the center floor air outlet duct forward enough toclear rear floor air duct, and then down, and rearward toinstall.Install the front floor console. Refer toFront Floor Console Replacement.
