Exhaust Manifold Removal (LAF, LEA, or LUK) Exhaust Exhaust Manifold

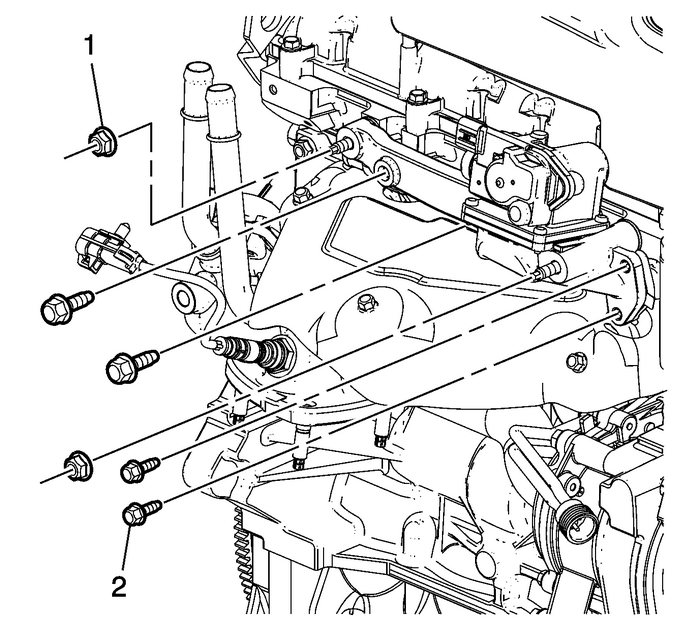

Remove the secondary air injection bolts-(2) andnuts-(1).

Exhaust Manifold Removal (LAF, LEA, or LUK) Exhaust Exhaust Manifold

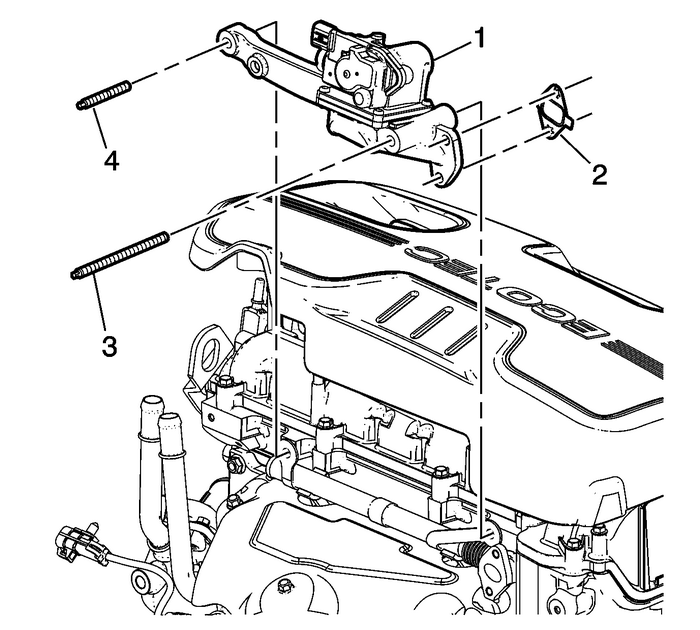

Remove the secondary air injection studs-(3 and4).Remove the secondary air injection valveassembly-(1).Remove the secondary air injection gasket-(2) anddiscard.

Exhaust Manifold Removal (LAF, LEA, or LUK) Exhaust Exhaust Manifold

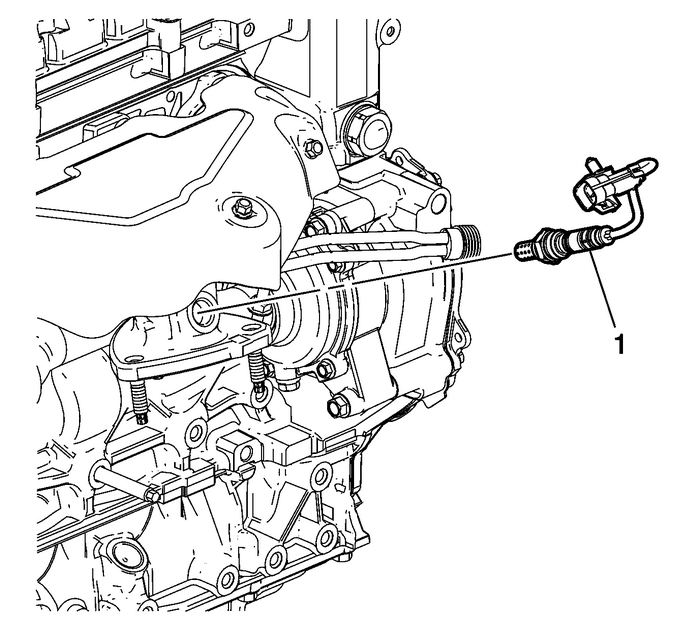

Remove the oxygen sensor-(1).

Exhaust Manifold Removal (LAF, LEA, or LUK) Exhaust Exhaust Manifold

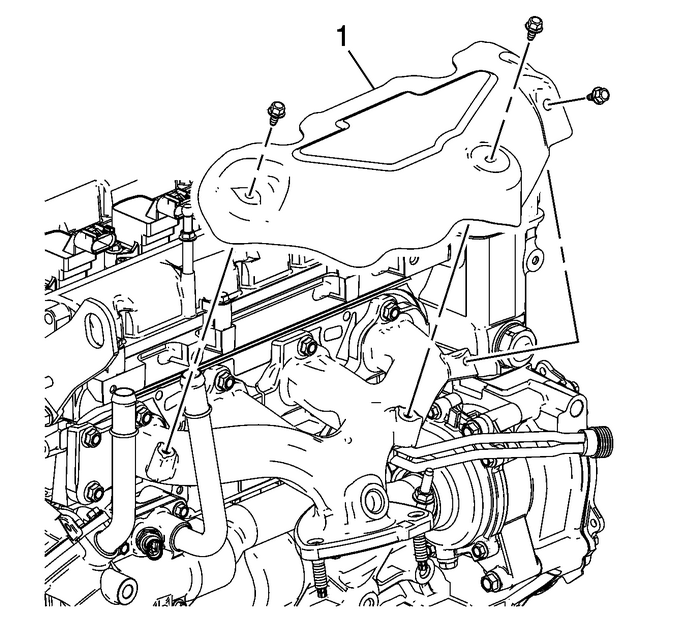

Remove the exhaust manifold heat shield bolts.Remove the exhaust manifold heatshield-(1).

Exhaust Manifold Removal (LAF, LEA, or LUK) Exhaust Exhaust Manifold

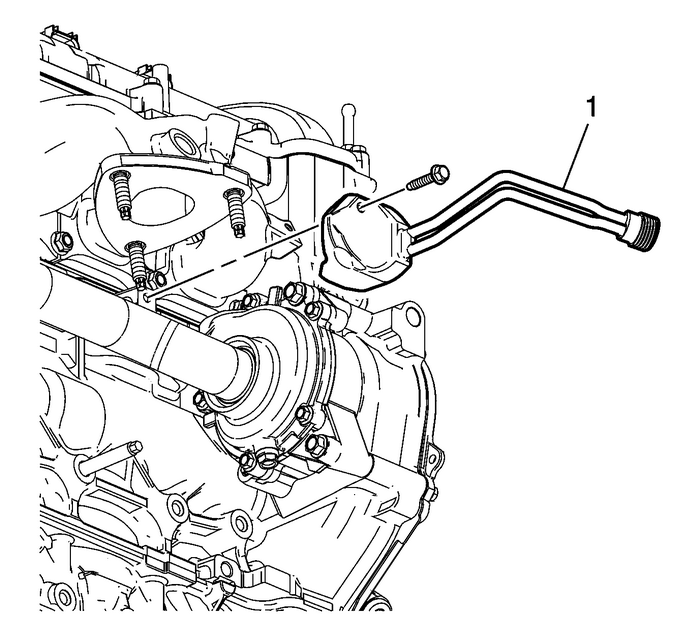

Remove the block heater-(1), if equipped.

Exhaust Manifold Removal (LAF, LEA, or LUK) Exhaust Exhaust Manifold

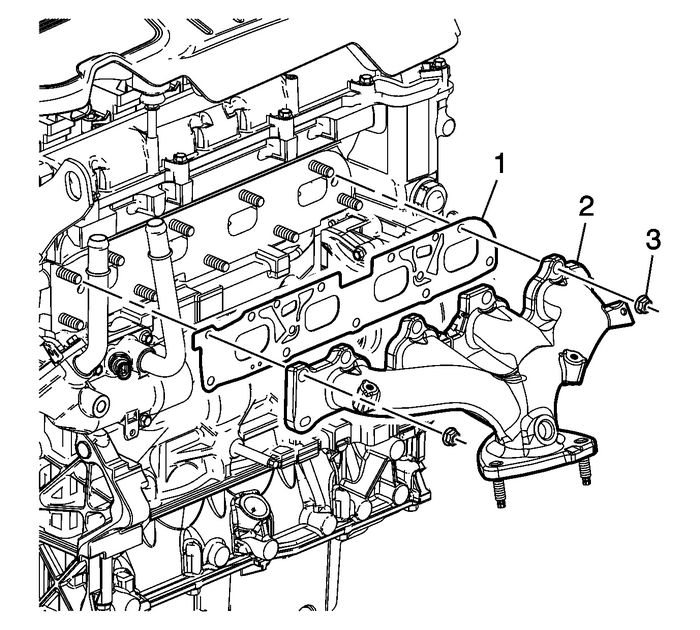

Remove and discard the exhaust manifold to cylinder headretaining nuts-(1).Remove the exhaust manifold-(2).Remove the exhaust manifold gasket-(3).Clean all of the sealing surfaces.If the exhaust manifold is being replaced, transfer thefollowing parts:The exhaust manifold heat shieldThe oxygen sensor

Exhaust Manifold Removal (LAF, LEA, or LUK) Exhaust Exhaust Manifold

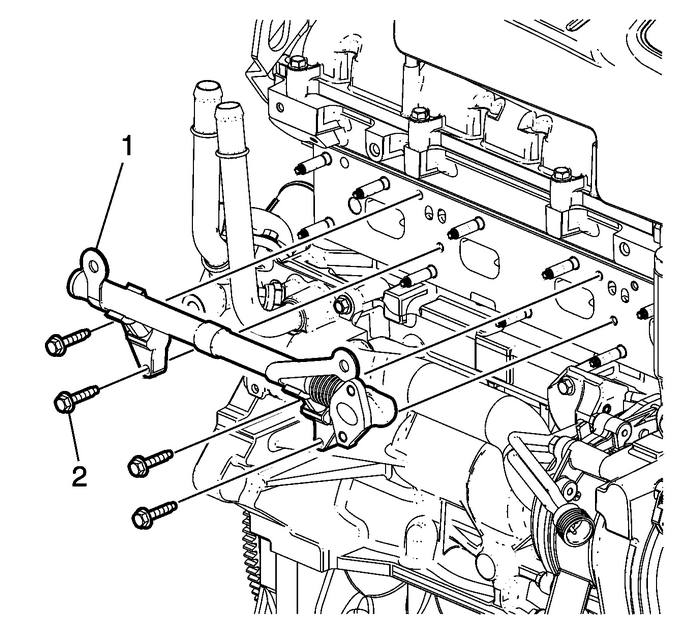

Remove the secondary air injection pipe assemblybolts-(2).Remove the secondary air injection pipeassembly-(1).

Secondary Air Injection Check Valve Removal - Bank 2 Emissions Air Injection
Remove the secondary air injection-(SAI) checkvalve bolts-(3).Remove the SAI check valve-(2).Remove and discard the SAI check valvegasket-(1). ...
