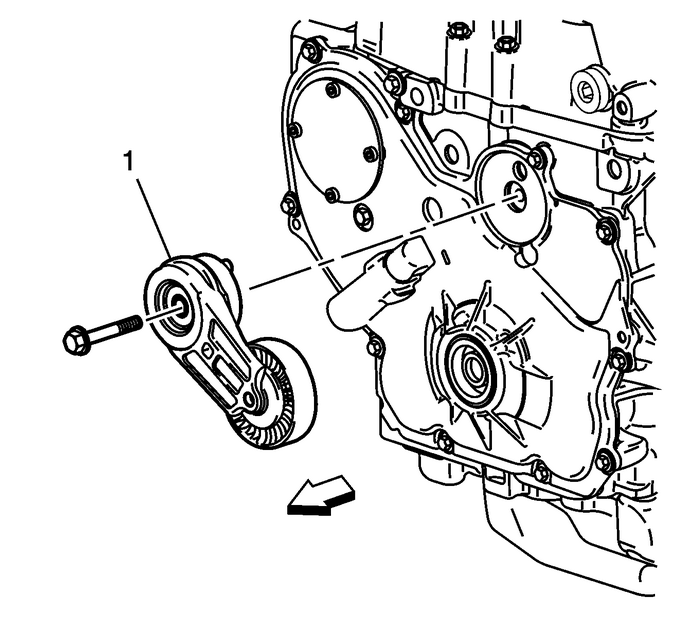

Remove the accessory drive belt tensioner bolt.Remove the accessory drive belttensioner-(1).

Engine Front Cover and Oil Pump Removal Engine Block Cylinder Block Cyl Block Front Cover

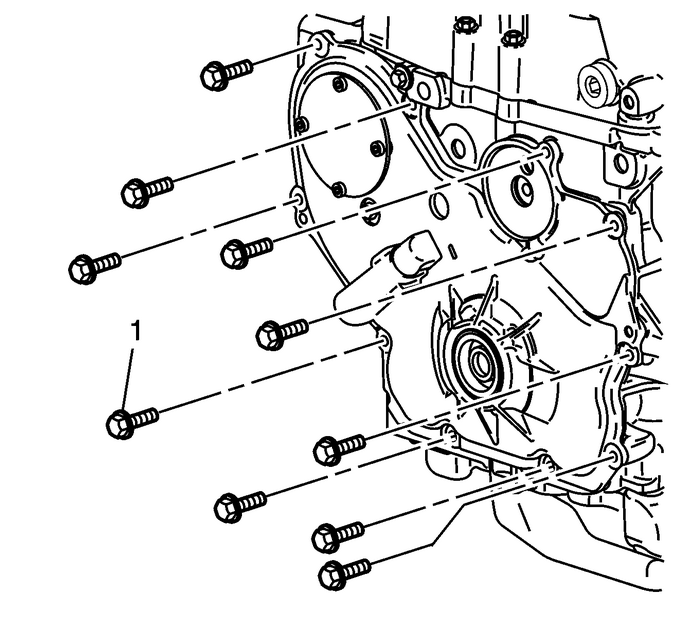

Remove the engine front cover bolts-(1).

Engine Front Cover and Oil Pump Removal Engine Block Cylinder Block Cyl Block Front Cover

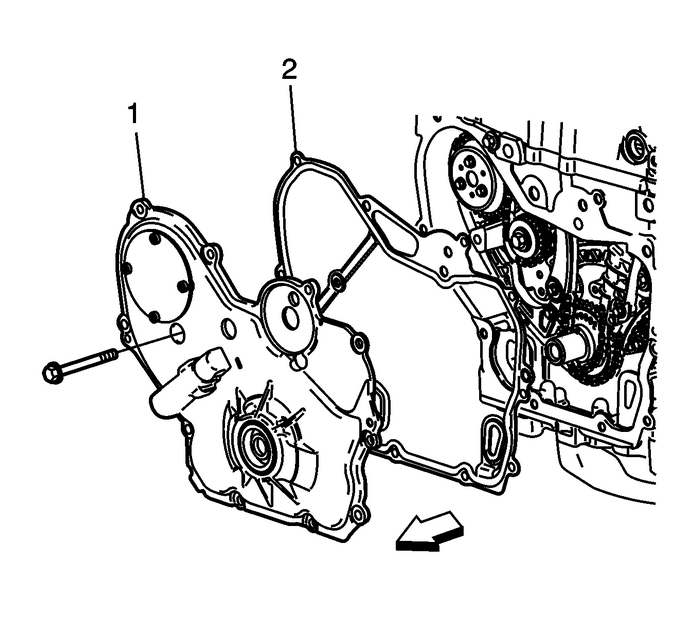

Remove the long water pump bolt.Remove the engine front cover-(1) andgaskets-(2).Remove the crankshaft front cover oil seal with anappropriate tool.

Oil Level Indicator and Tube Removal (LAF, LEA, or LUK) Engine Lubrication Oil Level Indicator Tube

Remove knock sensor connector-(4) from the oillevel indicator tube.Remove the electrical wiring harness from the oil levelindicator tube.Remove the oil level indicator tube bracketbolt-(3).Remove the ...

Water Pump and Balance Shaft Chain and Tensioner Removal Engine Block Cylinder Block Balance Shaft

Remove the balance shaft drive chain tensioner bolts.Remove the balance shaft drive chaintensioner-(1).Remove the adjustable balance shaft chain guide bolt.Remove the adjustable balance shaft chaingui ...
