Driver Seat Lumbar Control Switch Replacement

Callout

Component Name

Preliminary Procedure

Remove the driver seat outer adjuster finish cover. Refer toDriver or Passenger Seat Outer Adjuster Finish Cover Replacement.

1

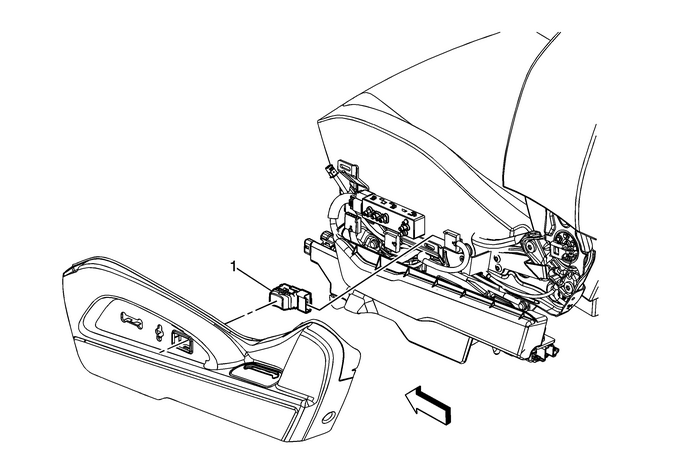

Driver Seat Lumbar Control Switch

Tip:Use a flat-bladed tool to release the switch from the finishcover.
