Door Lock Switch Replacement - Passenger Front Locks

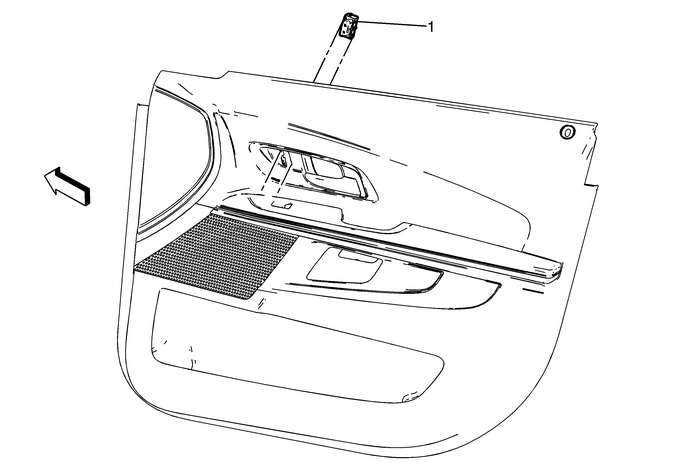

Door Lock Switch Replacement - Passenger Front

Callout

Component Name

Preliminary Procedure

Remove the front side door trim. Refer toFront Side Door Trim Panel Replacement.

1

Door Lock Switch Assembly

ProcedureUsing a plastic pry tool, gently pry on the sides to releasethe switch.Disconnect the electrical connectors.Refer toControl Module Referencesfor programming and set upprocedures.
