Chevrolet Equinox Service Manual: Cylinder Head Cleaning and Inspection Engine Block Cylinder Head

Chevrolet Equinox Service Manual / Powertrain / Engine / Cylinder Head Cleaning and Inspection Engine Block Cylinder Head

Special ToolsGE 8001Dial Indicator SetGE 8358Carbon Removal BrushEN 28410Gasket RemoverEN 42096Valve Guide ReamerEN 47909Injector Bore and Sleeve Cleaning Kit

For equivalent regional tools, refer toSpecial Tools.

Cleaning ProcedureRemove any old thread sealant, gasket material or sealantusingEN 28410remover.Clean all cylinder head surfaces withnon-corrosive solvent.

Warning:Refer toSafety Glasses Warning.

Blow out all the oil galleries using compressed air.Remove any carbon deposits from the combustion chambers usingtheGE 8358brush.Clean any debris or build-up from the lifterpockets.Visual Inspection

Cylinder Head Cleaning and Inspection Engine Block Cylinder Head

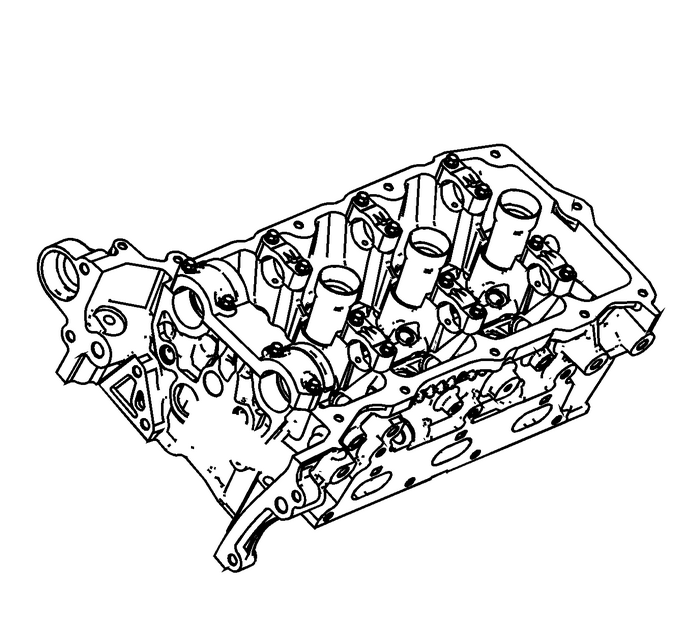

Inspect the cylinder head camshaft bearing surfaces for thefollowing conditions:Excessive scoring or pittingDiscoloration from overheatingDeformation from excessive wearIf the camshaft bearing journals appear to be scored ordamaged, you must replace the cylinder head. DO NOT machine thecamshaft bearing journals.If any of the above conditions exist on the camshaft bearingsurfaces, replace the cylinder head.Inspect the cylinder head for the following:Cracks, damage or pitting in the combustion chambersDebris in the oil galleries — Continue to clean thegalleries until all debris is removed.Coolant leaks or damage to the deck face sealing surface— If coolant leaks are present, measure the surfacewarpage as described under Cylinder Head Measurement –Deck Flatness Inspection.Burrs or any defects that would degrade the sealing of theNEW secondary camshaft drive chain tensioner gasketDamage to any gasket surfacesDamage to any threaded bolt holesBurnt or eroded areas in the combustion chamberCracks in the exhaust ports and combustion chambersExternal cracks in the water passagesRestrictions in the intake or exhaust passagesRestrictions in the cooling system passagesRusted, damaged or leaking core plugsIf the cylinder head is cracked or damaged, it must bereplaced. No welding or patching of the cylinder head isrecommended.

Cylinder Head Cleaning and Inspection Engine Block Cylinder Head

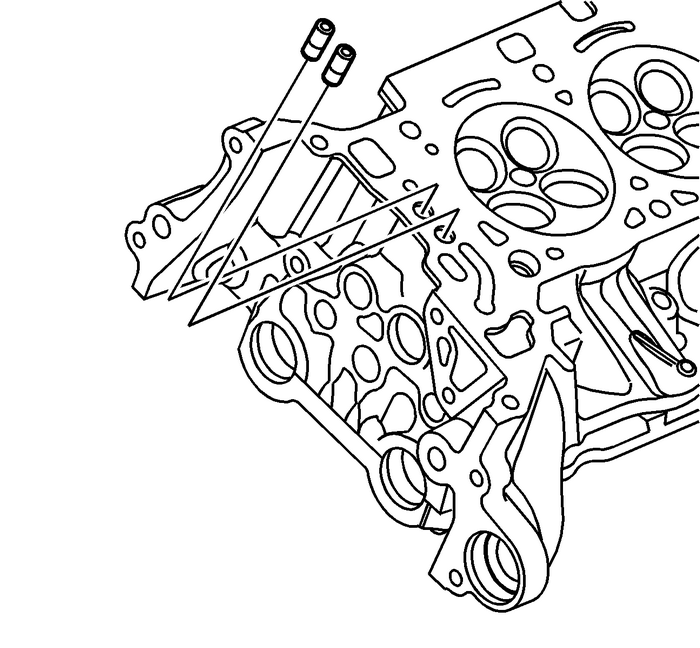

Inspect the camshaft position actuator oil feed check valves.Damaged, restricted or clogged check valves must be replaced. RefertoCylinder Head Disassemble.

Cylinder Head Cleaning and Inspection Engine Block Cylinder Head

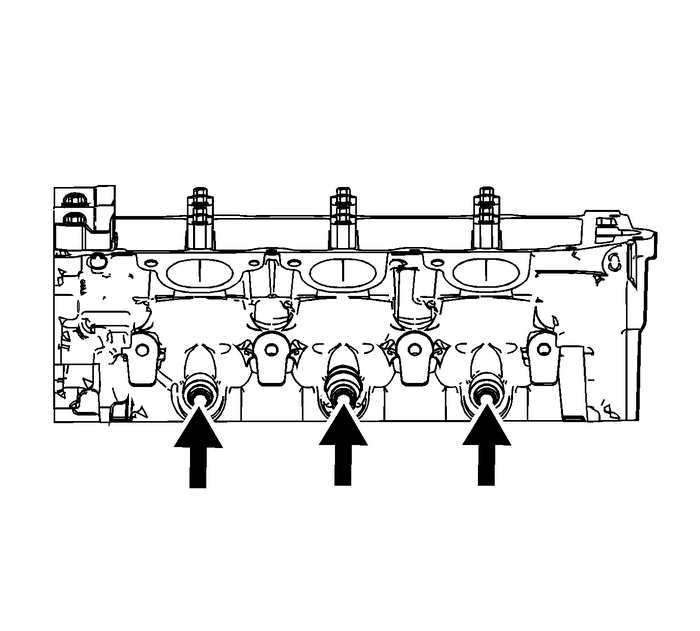

Inspect the fuel rail injector bores and clean withEN-47909kit, if required.Cylinder Head MeasurementCamshaft Journal ClearanceInstall the camshaft bearing cap in the cylinder head withoutthe camshaft.

Caution:Refer toFastener Caution.

Install the camshaft cap bolts and tighten to10-Y(89-lb-in).Measure the camshaft bearings using an insidemicrometer.Subtract the camshaft journal diameter from the camshaftbearing diameter. This will provide the running clearance. If therunning clearance exceeds specifications and the camshaft journalsare within specification, replace the cylinder head.Camshaft Journal AlignmentEnsure the camshafts are serviceable.Inspect the cylinder head camshaft bearing surfaces for anyimperfections or scratches that could inhibit proper camshaftclearances. Repair minor imperfections or scratches.Install the camshafts in the cylinder head.Install the camshaft bearing caps.Install the camshaft cap bolts and tighten to10-Y(89-lb-in).Ensure the camshafts spin freely in the cylinder head. If thecamshaft does not run freely, replace the cylinder head.Deck Flatness Inspection

Cylinder Head Cleaning and Inspection Engine Block Cylinder Head

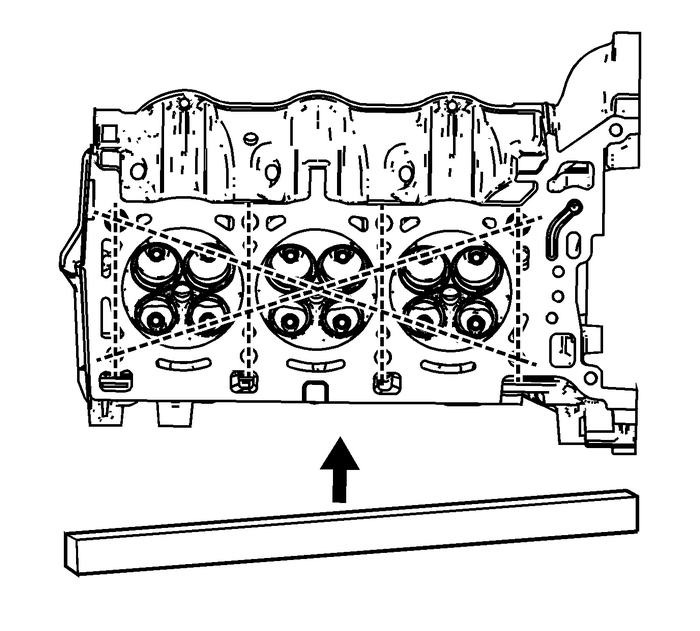

Ensure the cylinder head decks are clean and free of gasketmaterial.Inspect the surface for any imperfections or scratches thatcould inhibit proper cylinder head gasket sealing.Place a straight-edge diagonally across thecylinder head deck face surface.Measure the clearance between the straight-edgeand the cylinder head deck face using a feeler gauge at4-points along the straight-edge.If the warpage is less than 0.05-mm(0.002-in), the cylinder head deck surface does notrequire resurfacing.If the warpage is between 0.05–0.20-mm(0.002–0.008-in) or any imperfections orscratches that could inhibit proper cylinder head gasket sealingare present, the cylinder head deck surface requiresresurfacing.If resurfacing is required the maximum amount that can beremoved is 0.25-mm (0.010-in).If the cylinder head deck surface requires more than0.25-mm (0.010-in) material removal the headmust be replaced.Valve Guide Measurement

Cylinder Head Cleaning and Inspection Engine Block Cylinder Head

Measure the valvestem-(1)-to-guide-(2)clearance. Excessive valve stem-to-guideclearance may cause an excessive oil consumption and may also causea valve to break. Insufficient clearance will result in noisy andsticky functioning of the valve and will disturb the engineassembly smoothness.Clamp theGE 8001setto the cylinder head at the camshaft cover rail.Locate the dial indicator so that the movement of the valvestem from side to side, crossways to the cylinder head, will causea direct movement of the indicator stem. The dial indicator stemmust contact the side of the valve stem just above the valveguide.Drop the valve head about 0.064-mm(0.0025-in) off the valve seat.Use light pressure when moving the valve stem from side toside in order to obtain a clearance reading. Refer toEngine Mechanical Specificationsfor proper clearance.If the clearance for the valve is greater than specificationsand a new standard diameter valve stem will not bring the clearancewithin specifications, the valve guide may be oversized by0.075-mm (0.003-in) using theEN 42096reamer. There is 1-size of oversized valve stemavailable for service.Valve guide wear at the bottom 10-mm(0.390-in) of the valve guide is not significant tonormal operation.If oversizing the guide does not bring the clearance withinspecifications, replace the cylinder head.
