Chevrolet Equinox Service Manual: Cruise Control Switch Replacement (NK5) Cruise Control

Chevrolet Equinox Service Manual / Accessories / Driver Assist / Cruise Control Switch Replacement (NK5) Cruise Control

Cruise Control Switch Replacement (NK5) Cruise Control

Cruise Control Switch Replacement

Callout

Component Name

Preliminary Procedure

Remove the inflatable restraint steering wheel module. RefertoAirbag Steering Wheel Module Replacement.

1

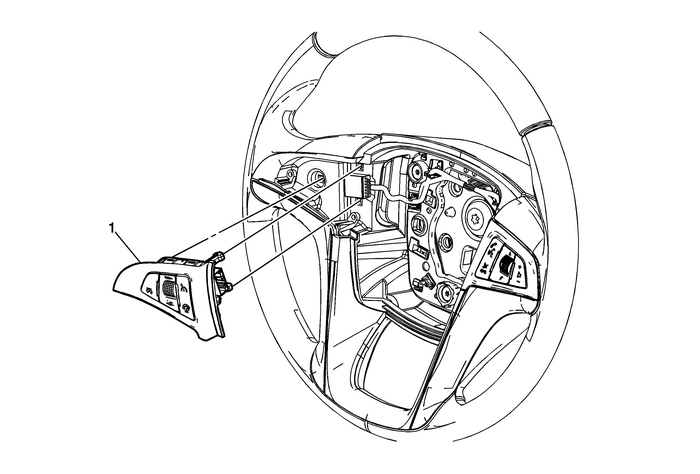

Cruise Control Switch

ProcedureUse flat bladed tool to release the switch from steeringwheel.Disconnect the electrical connector.
Cruise Control Description and Operation Cruise Control
Cruise control is a speed control system that maintains a desired vehicle speed undernormal driving conditions at speeds above 40-km/h (25-mph). Steep grades may causevariations in the selected vehicl ...

Cruise Control Switch Replacement (NP5) Cruise Control
Cruise Control Switch ReplacementCalloutComponent NamePreliminary ProcedureRemove the inflatable restraint steering wheel module. RefertoAirbag Steering Wheel Module Replacement.1Steering Wheel Spoke ...
