Chevrolet Equinox Service Manual: Crankshaft Rear Oil Seal Replacement Engine Block Seals and Gaskets

Chevrolet Equinox Service Manual / Powertrain / Engine / Crankshaft Rear Oil Seal Replacement Engine Block Seals and Gaskets

Special Tools

EN-42067Rear Main Seal Installer

For equivalent regional tools, refer toSpecial Tools.

Removal ProcedureRemove the flywheel. Refer toEngine Flywheel Replacement

Crankshaft Rear Oil Seal Replacement Engine Block Seals and Gaskets

Note:Do not damage the outside diameter of the crankshaft orchamber with any tool.

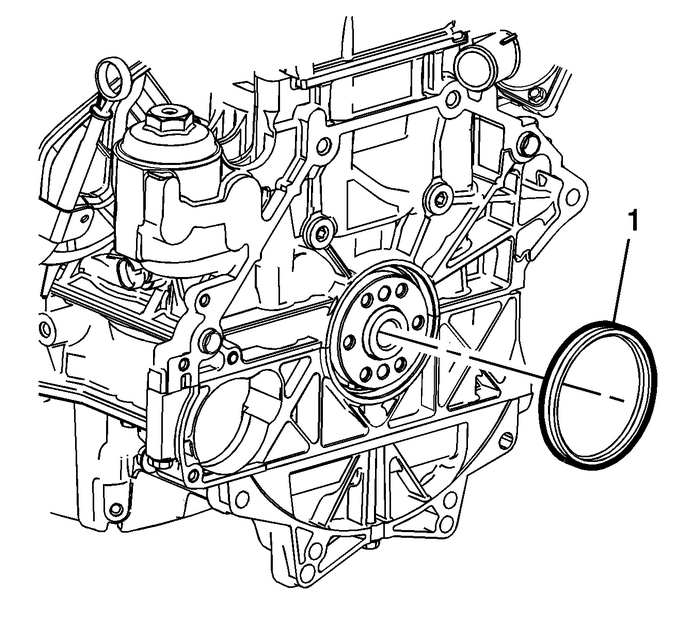

Use a suitable tool to remove the crankshaft rear oil seal(1).Installation Procedure

Crankshaft Rear Oil Seal Replacement Engine Block Seals and Gaskets

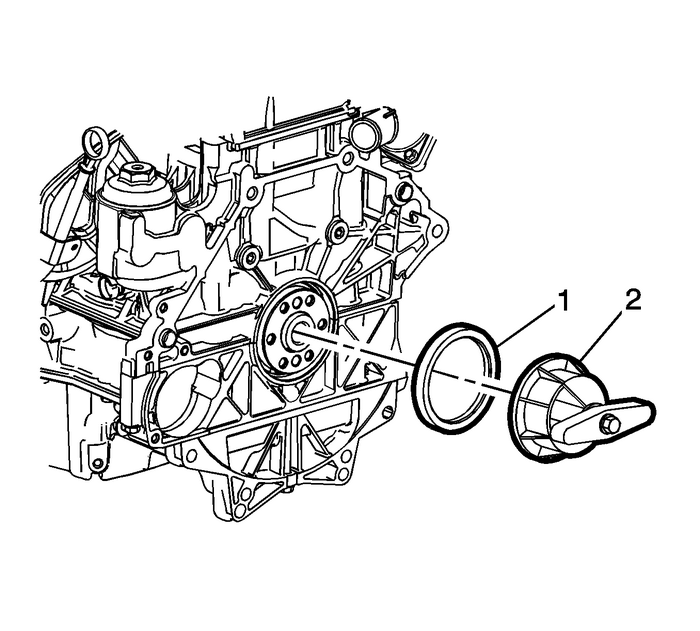

Using the (2)EN-42067installer, install a NEW crankshaft real oil seal (1).Install the flywheel. Refer toEngine Flywheel Replacement.

Crankshaft Balancer Installation Engine Block Cylinder Block Crankshaft

Special ToolsEN 41998-B Crankshaft Balancer InstallerEN 45059 Angle MeterEN 46106 Engine Flywheel Holding ToolFor equivalent regional tools, refer toSpecial Tools.The EN 46106 toolmust be installed on ...

Crankshaft Rear Oil Seal Installation Engine Block Seals and Gaskets

Special ToolsEN-42067Rear Main Seal InstallerFor equivalent regional tools, refer toSpecial Tools.Remove excess sealer from seal recess.Lubricate the outside diameter of the new crankshaft sealwith cl ...
