Special ToolsEN-45059 Angle MeterEN-38122-A Harmonic Balancer Holder

For equivalent regional tools, refer toSpecial Tools.

Removal Procedure

Crankshaft Balancer Replacement Engine Block Cylinder Block Crankshaft

Remove the drive belt. Refer toDrive Belt Replacement.Use EN-38122-A holder(1) to prevent the crankshaft from rotating while loosening the crankshaft balancerbolt (2).Remove and discard the crankshaft balancer bolt.

Crankshaft Balancer Replacement Engine Block Cylinder Block Crankshaft

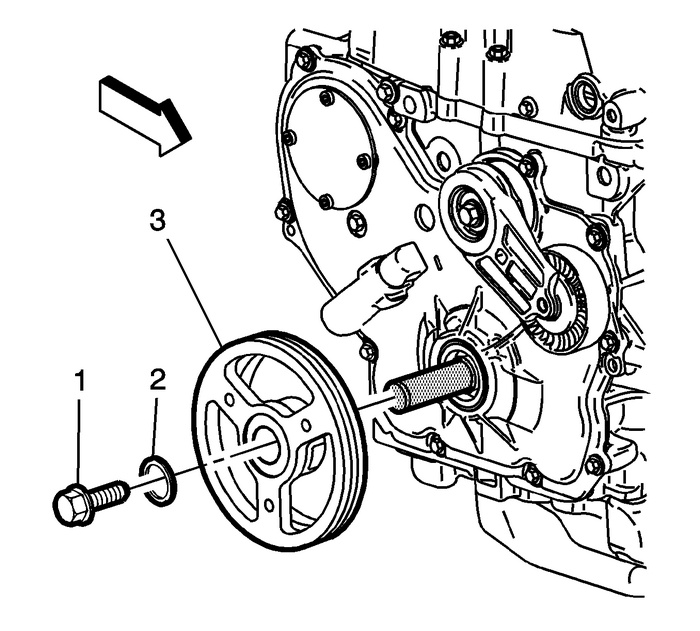

Remove the bolt (1), washer (2), and crankshaft balancer-(3).Installation Procedure

Crankshaft Balancer Replacement Engine Block Cylinder Block Crankshaft

Position the crankshaft balancer (3) .Install washer (2) and a NEW crankshaft balancer bolt-(1).

Crankshaft Balancer Replacement Engine Block Cylinder Block Crankshaft

Use the EN-38122-A holder(1) to hold the crankshaft balancer in order to prevent the balancer from rotatingwhile tightening the bolt (2) .

Caution:Refer toFastener Caution.

Tighten the crankshaft balancer bolt to 150-Y (111-lb-ft) plus an additional 100 degrees using the EN-45059 meter.Install the drive belt. Refer toDrive Belt Replacement.
