Crankshaft Bearing Installation Procedure

Note:If the crankshaft bearings have been used in a running engine, you must replace themwith NEW crankshaft bearings for reassembly.

Clean the crankcase crank bore with a lint-free cloth.Clean all the oil from the backside of new bearing halves.

Crankshaft and Bearing Installation Engine Block Cylinder Block Crankshaft

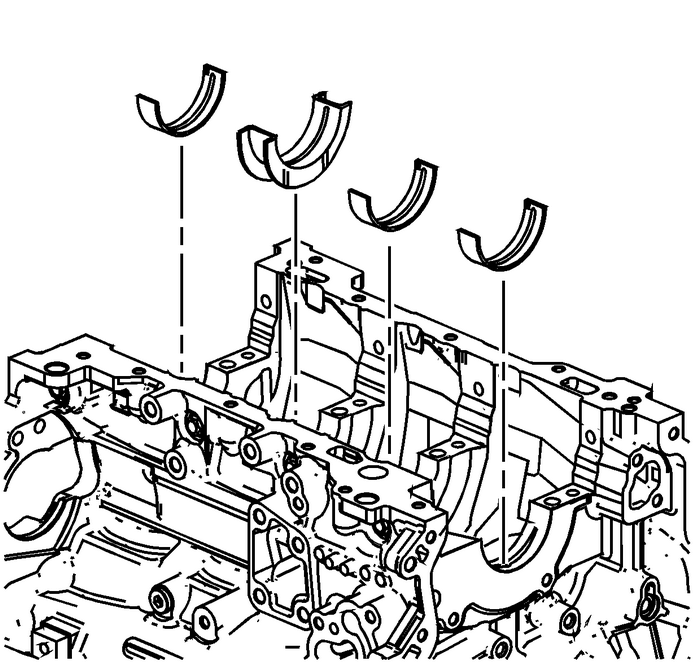

Install the NEW upper crankshaft bearings into position. The thrust bearing belongsin the number-3 journal. Ensure that the upper bearing insert contains the oil transferhole and groove. Roll the bearing into position so that the lock tang engages thecrank slot. The bearing must fit flush with the upper crankcase.

Crankshaft and Bearing Installation Engine Block Cylinder Block Crankshaft

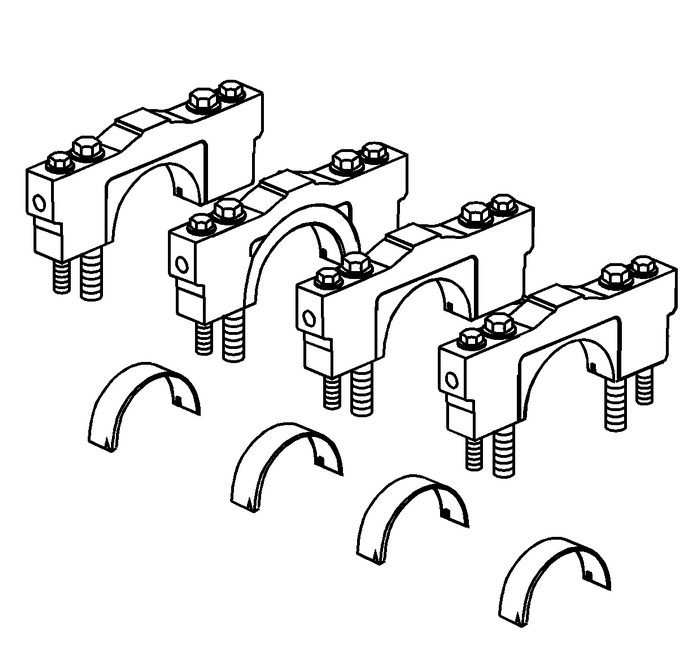

Install the NEW lower crankshaft bearings into position in the main bearing caps.The lower crankshaft bearings are identified by NO grooves or holes. The bearingsmust fit flush with the crankshaft bearing caps.Crankshaft Installation Procedure

Crankshaft and Bearing Installation Engine Block Cylinder Block Crankshaft

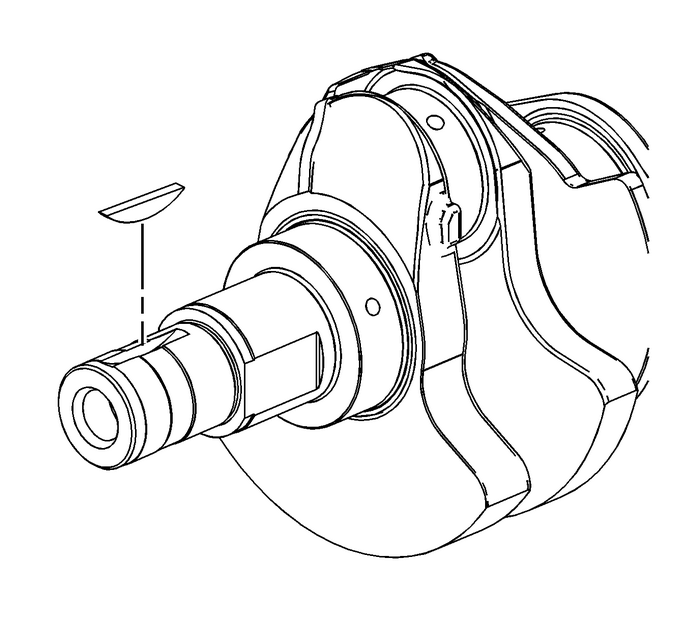

If removed, install the crankshaft key. Lightly tap the key in place with a smallsoft face, bronze/plastic, hammer until it bottoms in the keyway.

Crankshaft and Bearing Installation Engine Block Cylinder Block Crankshaft

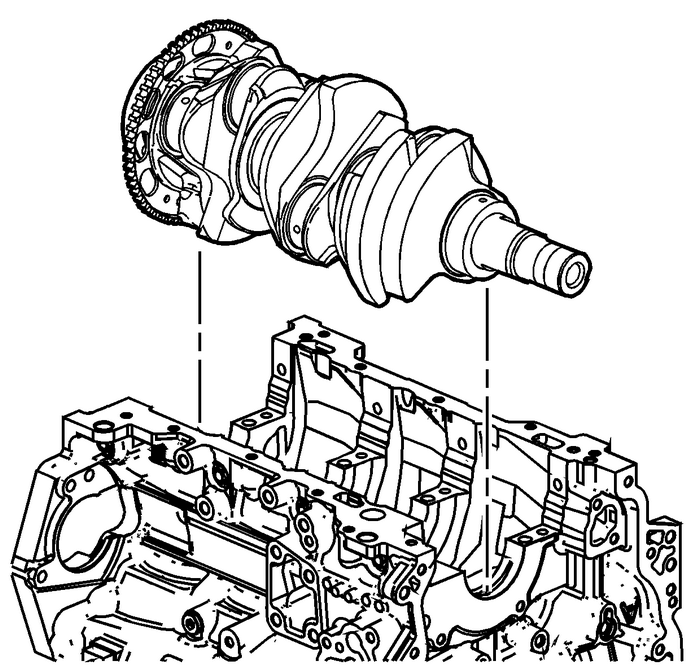

Gently lower the crankshaft into position in the cylinder block.Crankshaft Bearing Clearance Measurement Procedure

Crankshaft and Bearing Installation Engine Block Cylinder Block Crankshaft

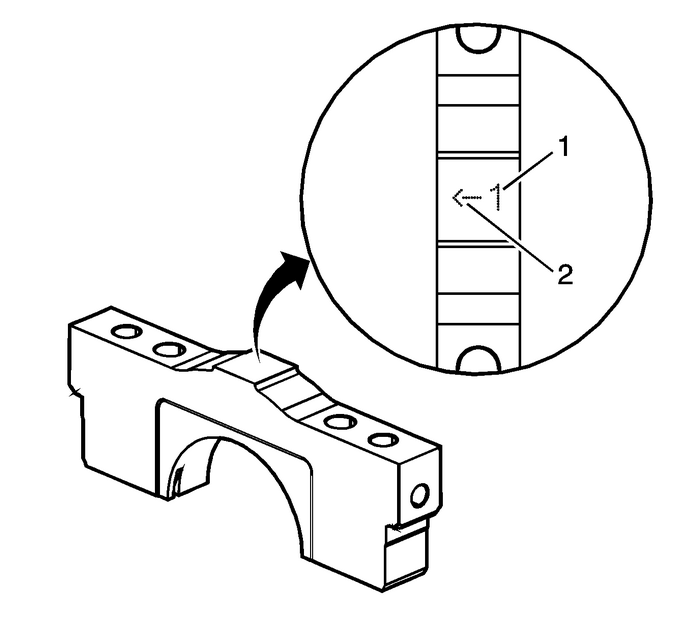

Place a length of fresh, room temperature plastic gaging material all the way acrossall the crankshaft bearing journals.Identify the proper order of the main bearing caps. The main bearing caps are numbered-1-(1)through-4, with the front main bearing cap marked with the number-1. The arrow-(2)is to be oriented to the front of the engine.

Crankshaft and Bearing Installation Engine Block Cylinder Block Crankshaft

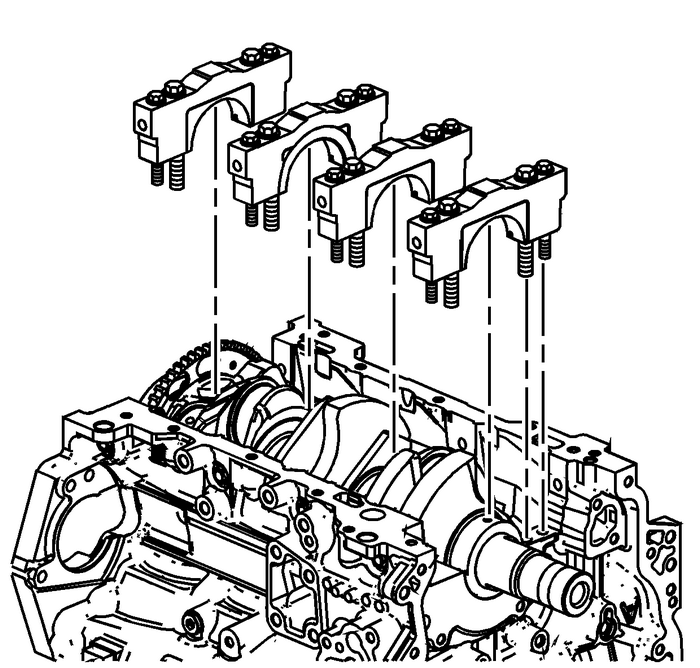

Install the crankshaft main bearing caps.Loosely install the original inner main cap bolts.Loosely install the original outer main cap bolts.

Crankshaft and Bearing Installation Engine Block Cylinder Block Crankshaft

Loosely install the original short/inner side main cap bolts.Loosely install the original long/outer side main cap bolts.

Crankshaft and Bearing Installation Engine Block Cylinder Block Crankshaft

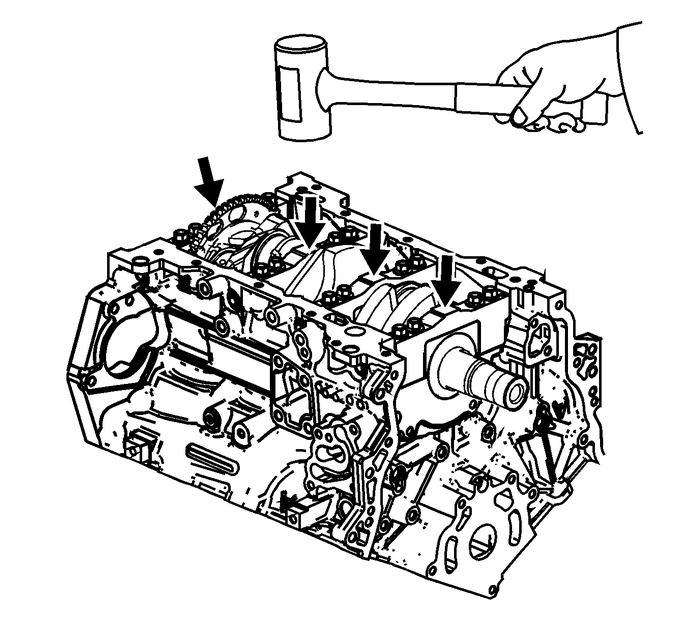

Tap the crankshaft main bearing caps with a soft-faced hammer.

Crankshaft and Bearing Installation Engine Block Cylinder Block Crankshaft

Tighten the main caps bolts using the EN 45059 meterin the following sequence:

Caution:Refer toFastener Caution.

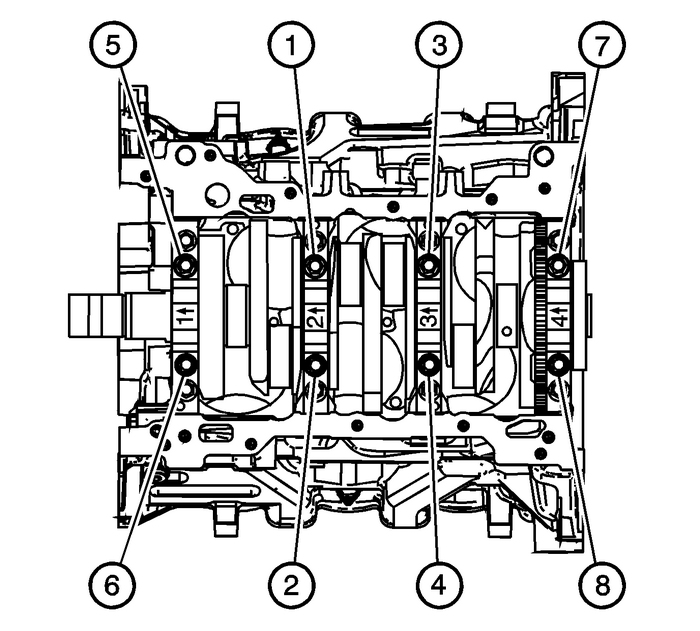

Tighten the inboard bolts-(1–8) first, in two passes.Tighten the inboard bolts to 20-Y (15-lb-ft) on the first pass.Tighten the inboard bolts-(1–8) an additional 80-degrees on the 2nd pass.

Crankshaft and Bearing Installation Engine Block Cylinder Block Crankshaft

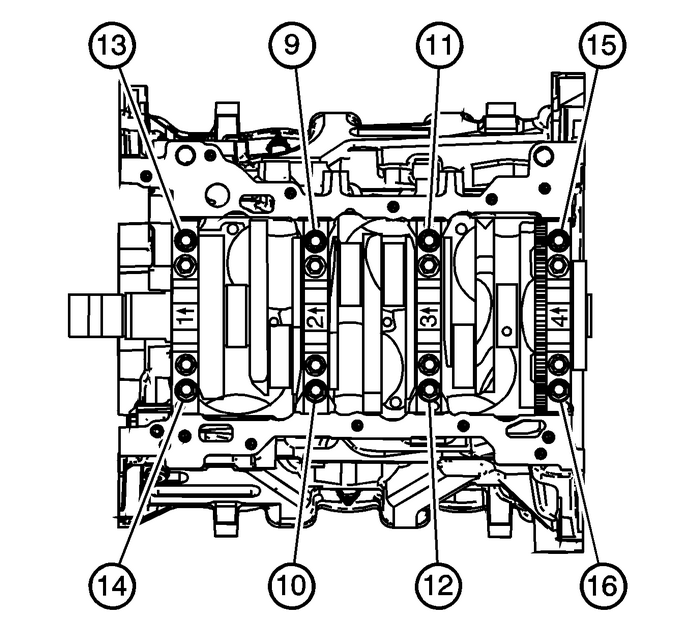

Tighten the outboard bolts-(9–16) second, in two passes.Tighten the outboard bolts to 15-Y (11-lb-ft) on the first pass.Tighten the outboard bolts-(9–16) an additional 110-degrees on the 2nd pass.

Crankshaft and Bearing Installation Engine Block Cylinder Block Crankshaft

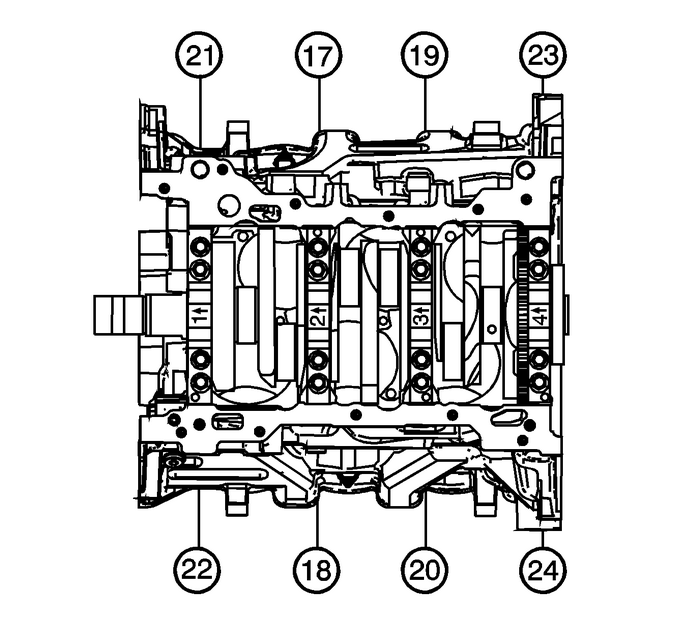

Tighten the short/inner bolts-(17–20) third, in two passes.Tighten the short/inner bolts to 30-Y (22-lb-ft) on the first pass.Tighten the short/inner bolts-(17–20) an additional 60-degrees on the 2nd pass.Tighten the long/outer bolts-(21–24) fourth, in two passes.Tighten the long/outer bolts to 30-Y (22-lb-ft) on the first pass.Tighten the long/outer bolts-(21–24) an additional 60-degrees on the 2nd pass.

Note:Do not rotate the crankshaft.

After reaching final torque, allow the assembly to sit for 2-minutes.

Crankshaft and Bearing Installation Engine Block Cylinder Block Crankshaft

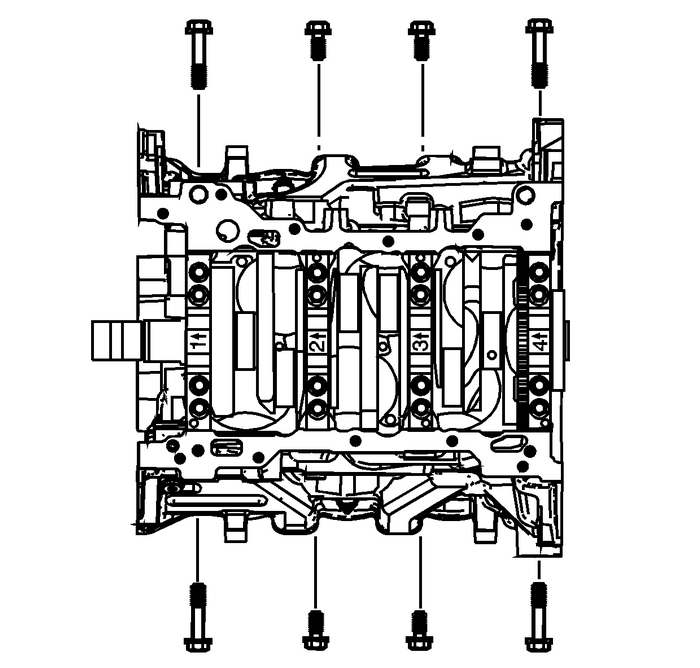

Remove the crankshaft bearing cap side bolts.

Crankshaft and Bearing Installation Engine Block Cylinder Block Crankshaft

Remove the crankshaft bearing cap outer bolts.Remove the crankshaft bearing cap inner bolts.Remove the crankshaft bearing caps using the GE 6125-1B adapterand EN 49102 remover.

Crankshaft and Bearing Installation Engine Block Cylinder Block Crankshaft

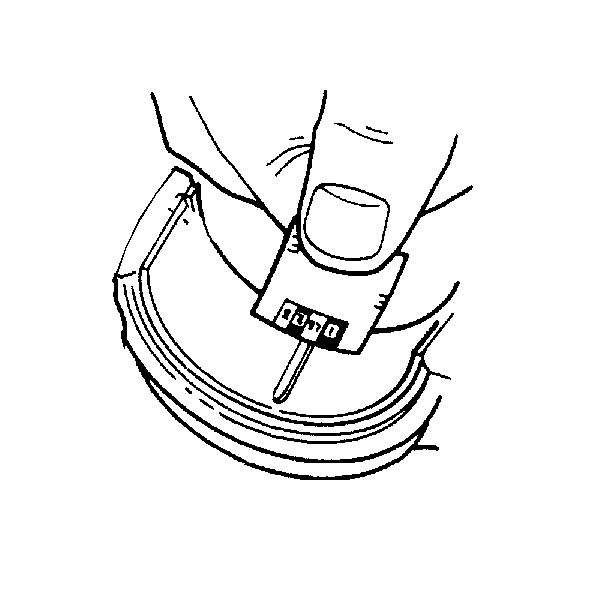

Determine the crankshaft bearing clearance by comparing the width of the flattenedplastic gaging material at its widest point with the graduation on the gaging materialcontainer.

Note:The crankshaft bearings CAN be reused after checking the clearance if the bearingshave never been used in a running engine.

Compare your measurements with theEngine Mechanical Specifications. If the new bearings do not provide the proper crankshaft to bearing clearance, inspectthe following:Re-measure the crankshaft journals for the correct specified size and ensure the propernew bearings are being installed. If the crankshaft journals are incorrectly sized,replace or regrind the crankshaft. Crankshaft machining is permitted and undersizedbearings are available.Re-measure the engine block crankshaft bearing bore diameter to ensure proper size.The engine block crankshaft bearing bore is not machinable and the block must be replacedif out of specification.Clean the plastic gaging material from the crankshaft bearing journals with a soft,lint-free cloth.

Crankshaft and Bearing Installation Engine Block Cylinder Block Crankshaft

Lift the crankshaft out of the cylinder block.

Crankshaft and Bearing Installation Engine Block Cylinder Block Crankshaft

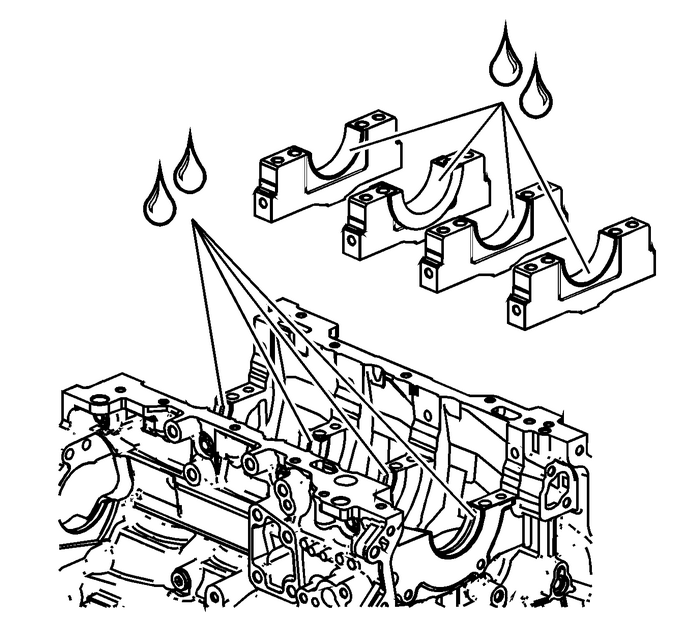

Apply a liberal amount of crankshaft prelube or clean engine oil to the upper andlower bearing surfaces. Refer toAdhesives, Fluids, Lubricants, and Sealersfor recommended lubricant.

Crankshaft and Bearing Installation Engine Block Cylinder Block Crankshaft

Gently lower the crankshaft into position in the cylinder block.

Crankshaft and Bearing Installation Engine Block Cylinder Block Crankshaft

Identify the proper order of the main bearing caps. The main bearing caps are numbered-1-(1)through-4, with the front main bearing cap marked with the number-1. The arrow-(2)is to be oriented to the front of the engine.

Crankshaft and Bearing Installation Engine Block Cylinder Block Crankshaft

Install the crankshaft main bearing caps.

Caution:This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEWtorque-to-yield or single use fastener when installing this component. Failure toreplace the torque-to-yield or single use fastener could cause damage to the vehicleor component.

Loosely install the NEW inner main cap bolts.Loosely install the NEW outer main cap bolts.

Crankshaft and Bearing Installation Engine Block Cylinder Block Crankshaft

Tap the crankshaft main bearing caps with a soft-faced hammer.

Crankshaft and Bearing Installation Engine Block Cylinder Block Crankshaft

Loosely install the NEW short/inner side main cap bolts.Loosely install the NEW long/outer side main cap bolts.

Crankshaft and Bearing Installation Engine Block Cylinder Block Crankshaft

Tighten the main cap bolts using the EN 45059 meterin the following sequence:Tighten the inboard bolts-(1–8) first, in two passes.Tighten the inboard bolts to 20-Y (15-lb-ft) on the first pass.Tighten the inboard bolts-(1–8) an additional 80-degrees on the 2nd pass.

Crankshaft and Bearing Installation Engine Block Cylinder Block Crankshaft

Tighten the outboard bolts-(9–16) second, in two passes.Tighten the outboard bolts to 15-Y (11-lb-ft) on the first pass.Tighten the outboard bolts-(9–16) an additional 110-degrees on the 2nd pass.

Crankshaft and Bearing Installation Engine Block Cylinder Block Crankshaft

Tighten the short/inner bolts-(17–20) third, in two passes.Tighten the short/inner bolts to 30-Y (22-lb-ft) on the first pass.Tighten the short/inner bolts-(17–20) an additional 60-degrees on the 2nd pass.Tighten the long/outer bolts-(21–24) fourth, in two passes.Tighten the long/outer bolts to 30-Y (22-lb-ft) on the first pass.Tighten the long/outer bolts-(21–24) an additional 60-degrees on the 2nd pass.Ensure that the crankshaft turns without binding or noise.
