Control Valve Body Cleaning and Inspection (Gen 2) Automatic Transmission Unit Control Valve Body

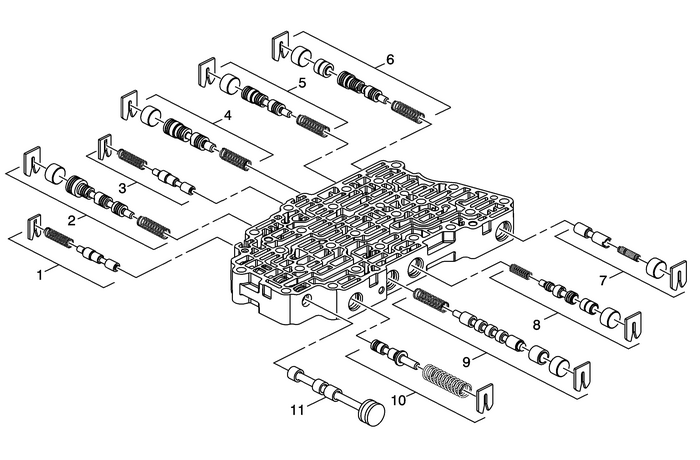

Control Valve Body Cleaning and Inspection

Callout

Component Name

Warning:Valve springs can be tightly compressed. Use care whenremoving retainers and plugs. Personal injury could result.

Caution:After cleaning the transmission components, allow to air dry.Do not use cloth or paper towels in order to dry any transmissioncomponents. Lint from the towels can cause componentfailure.

Caution:Do not reuse cleaning solvents. Previously used solvents maydeposit sediment which may damage the component.

Preliminary Procedure

Clean and inspect all valve components and the valve body.The control valve body assembly is only replaceable as anassembly.

1

Low-Reverse and 4–5–6 Clutch Boost ValveTrain

2

Low-Reverse and 4–5–6 Clutch RegulatorValve Train

3

1–2–3–4 Clutch Boost ValveTrain

4

1–2–3–4 Clutch Regulator ValveTrain

5

2–6 Clutch Regulator ValveTrain

6

3–5 Reverse Clutch Regulator Valve Train

7

Defualt Override Valve Train

8

TCC Regulator Apply Valve Train

9

Clutch Select Valve Train

10

Actuator Feed Limit Valve Train

11

Manual Valve
