Control Valve Body Assembly Disassemble (Gen 2) Automatic Transmission Unit Control Valve Body

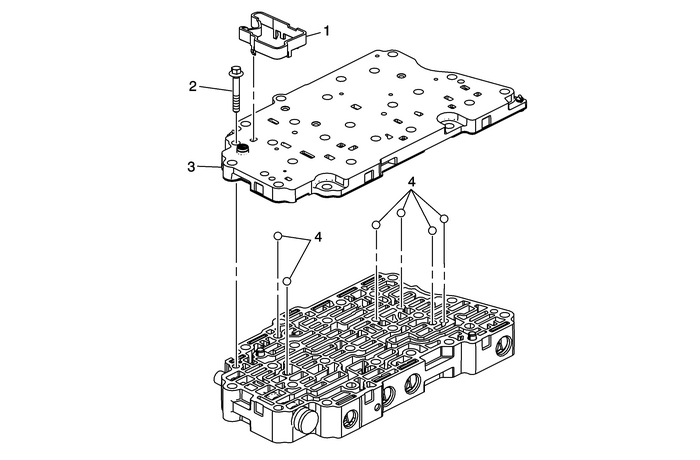

Control Valve Body Assembly Disassemble

Callout

Component Name

1

Control Solenoid Valve Support

2

Control Valve Body Bolt-M5-x-40.5-(Qty:-1)

3

Valve Channel Plate

Note:Inspect the channel plate bolt pass through holes for damage or brinelling. Any damagewill cause incorrect pressure switch operation. Replace as necessary.

4

Valve Body Ball Check Valves-(Qty:-6)

Control Valve Body Assembly Assemble (Gen 2) Automatic Transmission Unit Control Valve Body
Control Valve Body Assembly AssembleCalloutComponent Name1Valve Body Ball Check Valve-(Qty:-6)2Valve Channel Plate3Control Valve Body Bolt-M5-x-40.5-(Qty:-1)Caution:Refer toFastener Caution.Tighten7-Y ...

Control Valve Body Assembly Disassemble Automatic Transmission Unit Control Valve Body
Control Valve Body Assembly DisassembleCalloutComponent Name1Control Valve Body Bolt-M6-x-65 (Qty: 5)2Control Valve Body Bolt-M6-x-35 (Qty: 3)3Control Valve Channel Upper Plate AssemblyNote:Inspect th ...
