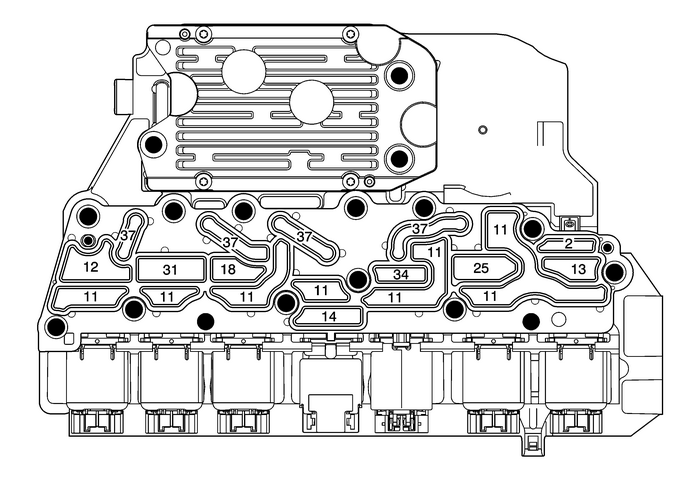

Control Solenoid (w/Body and TCM) ValveAssembly-–-Channel PlateSide

Control Solenoid (w/Body and TCM) Valve Assembly - Channel Plate Side Automatic Transmission Unit

in.

(2)Line
(11)Actuator Feed Limit
(12)PCS Line
(13)PCS R1/456 Clutch
(14)Shift Solenoid
(18)PCS 35 Reverse Clutch
(25)PCS 1234 Clutch
(31)PCS 26 Clutch
(34)PCS TCC
(37)Void
