Center Pillar Lower Trim Panel Replacement Trim Panels/Welts

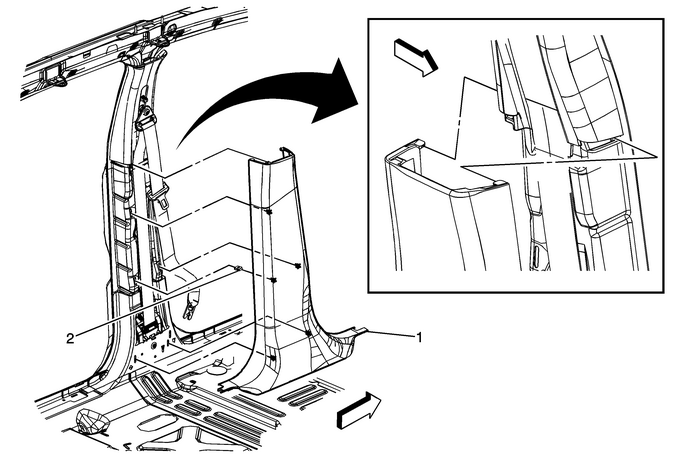

Center Pillar Lower Trim Panel Replacement

Callout

Component Name

Preliminary ProceduresDisable the SIR. Refer toSIR Disabling and Enabling.Remove the rear side door opening floor carpet retainer.Refer toRear Side Door Opening Floor Carpet Retainer Replacement.Remove the body hinge pillar trim panel. Refer toBody Hinge Pillar Trim Panel Replacement.

1

Center Pillar Lower Trim Panel

Tip:Start at the top of the lower garnish molding, pull at theclip locations to disengage the clips.

2

Center Pillar Lower Trim Panel Retainer Clip(Qty:-6)
