Chevrolet Equinox Service Manual: Camshaft Cleaning and Inspection (LAF, LEA, or LUK) Valvetrain Camshaft

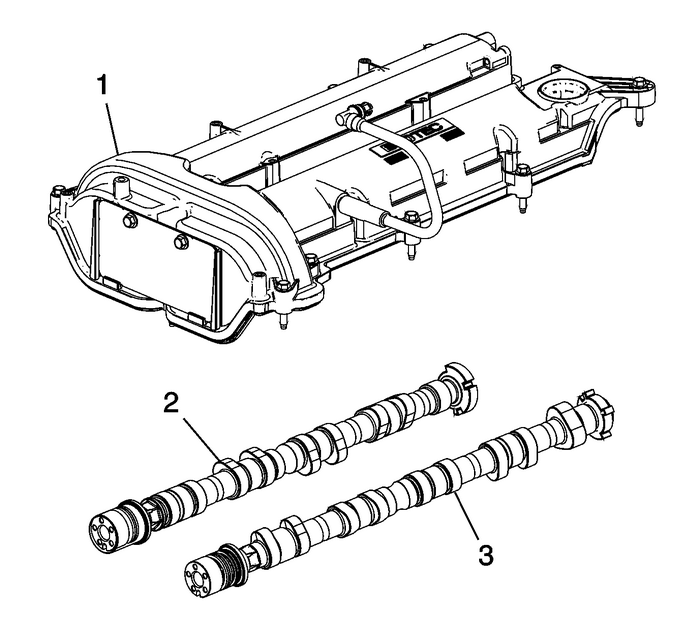

Inspect the camshaft journals and lobes for wear orscoring.Inspect the camshaft sprocket alignment notch fordamage.Inspect the camshaft cover-(1) for damage or looseoil control baffles.Clean the camshaft cover.Wash the camshafts-(2, 3) in solvent.Oil the camshafts.Inspect the camshaft cover for cracks or other signs ofdamage.
Valve Rocker Arm Cleaning and Inspection Valvetrain Valve Actuating Assembly Rocker Arms
Inspect the camshaft follower roller-(1) for thefollowing:Flat spotsExcessive scoring and pittingEnsure the roller spins freelyInspect the camshaft follower valve tiparea-(2).Inspect the camshaft foll ...
Secondary Air Injection Check Valve Cleaning and Inspection Emissions Air Injection
Inspect the secondary air injection-(SAI) checkvalve for the following:Damage to the SAI check valve feed pipefitting-(1)Damage to the SAI check valve mounting boltholes-(2)Damage to the SAI check val ...
Other materials:
Torque Converter Housing with Fluid Pump Assembly Installation (6T40/6T45/6T50 Non Hybrid) Automatic Transmission Unit Transmission Oil Pump
Torque Converter Housing with Fluid Pump Assembly InstallationCalloutComponent Name1Fluid Pump Seal Assembly2Torque Converter Housing Gasket3Torque Converter (w/Fluid Pump) Housing AssemblyNote:Rotate the differential slightly in each direction using the rotating tool to alignthe Differential Pinion ...
