Brake Pedal Position Sensor Replacement Hydraulic Brakes Brake Pedal Assembly

Brake Pedal Position Sensor Replacement

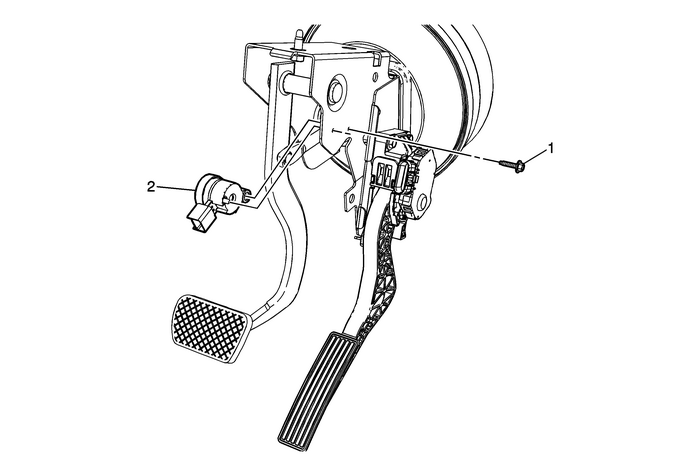

Callout

Component Name

Preliminary ProcedureRemove the instrument panel insulator panel left side. RefertoInstrument Panel Insulator Panel Replacement - Left Side.Remove the communication interface module. Refer toCommunication Interface Module Replacement

1

Brake Pedal Position Sensor Bolt

Caution:Refer toFastener Caution.

Tighten

9-Y(80-lb-in)

2

Brake Pedal Position Sensor

ProcedureDisconnect the electrical connector.Pull the sensor away from the bracket.Recalibrate the brake pedal position sensor. Refer toBrake Pedal Position Sensor Calibration.
Brake Component Specifications
Brake Component SpecificationsApplicationSpecificationMetricEnglishBrake Caliper Bleeder Valve- Front10-Y89-lb-inBrake Caliper Bleeder Valve- Rear10-Y89-lb-in ...

Brake System Specifications
Brake System SpecificationsApplicationSpecificationMetricEnglishBrake Pedal TravelMaximum specification with 445 N (100-lbs) offorce applied to the brake pedal with the ignition OFF and thebooster pow ...
