Chevrolet Equinox Service Manual: Automatic Transmission Flex Plate Replacement Manual Clutch Pressure Plate Assembly

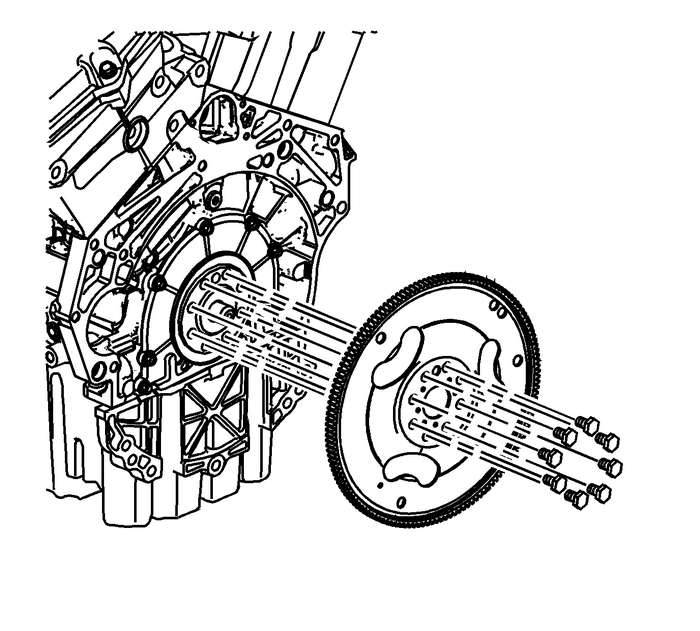

Removal Procedure
Remove the transmission. Refer toTransmission Replacement.Remove the flywheel. Refer toEngine Flywheel RemovalClean and inspect the flywheel. Refer toEngine Flywheel Cleaning and Inspection. If the flywheel teeth aredamaged, inspect the starter for proper operation. Replace thestarter if you find excessive wear or damage to the starterdrive.Installation Procedure
Install the flywheel. Refer toEngine Flywheel InstallationInstall the transmission. Refer toTransmission Replacement.
Control Solenoid Valve and Transmission Control Module Assembly Replacement Automatic Transmission Unit
Removal ProcedureRemove the transmission control valve body cover. Refer toControl Valve Body Cover Replacement.Disconnect the input speed sensor electrical connector-(1).Disconnect the output speed s ...
Range Selector Lever Cable Bracket Replacement Automatic Transmission Unit
Removal ProcedureSet the park brake and chock the wheels.Disconnect the range selector cable end-(1) from the range selector lever.Disconnect the range selector cable-(2) from the range selector cable ...
Other materials:
Channel Plate to Valve Body Spacer Plate Assembly - Channel Plate Side Automatic Transmission Unit
Channel Plate to Valve Body Spacer PlateAssembly-–-Channel PlateSide(2)Line(9)Regulated Apply(10)Exhaust Backfill(11)Actuator Feed Limit(12)PCS Line(13)PCS R1/456 Clutch(14)Shift Solenoid(15)R1/456 Clutch Feed(16)R1/456 Clutch Feedback(18)PCS 35 Reverse Clutch(19)Reverse(20)35 Reverse Clutch Feed( ...
