Air Conditioning Condenser Replacement Condenser

Air Conditioning Condenser Replacement

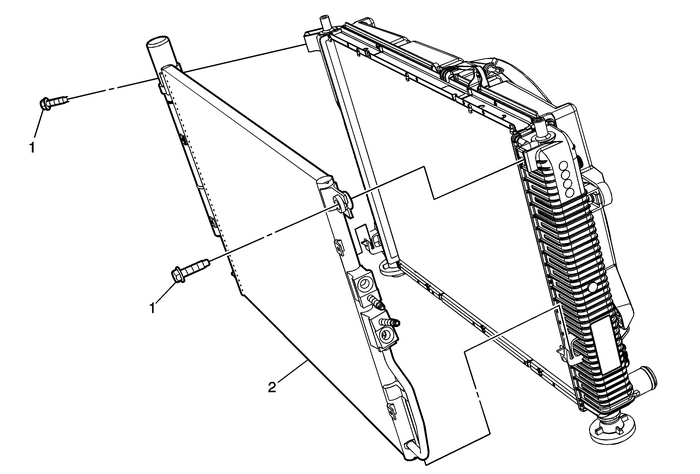

Callout

Component Name

Preliminary ProceduresRecover the refrigerant. Refer toRefrigerant Recovery and Recharging.Remove the radiator air lower baffel and deflector. Refer toRadiator Air Lower Baffle and Deflector Replacement.Remove the radiator air upper baffel and deflector. Refer toRadiator Air Upper Baffle and Deflector Replacement.Remove the air conditioning compressor hose. Refer toAir Conditioning Compressor Hose ReplacementRemove the air conditioning condenser and air conditioningevaporator tube. Refer toAir Conditioning Condenser and Air Conditioning Evaporator Tube Replacement

Air Conditioning Condenser Bolt

Caution:Refer toFastener Caution.

Tighten

9-Y(80-lb-in)

Air Conditioning Condenser

Procedure

Add the specified amount of polyalkylene glycol (PAG) oil tothe condenser. Refer toRefrigerant System Specifications

Air Conditioning Compressor Replacement (LEA) Compressor

Air Conditioning Compressor ReplacementCalloutComponent NamePreliminary ProceduresRecover the refrigerant. Refer toRefrigerant Recovery and Recharging.Raise and support the vehicle. Refer toLifting an ...

Air Conditioning Evaporator and Blower Module Drain Hose Replacement Evaporator

Air Conditioning Evaporator and Blower Module Drain Hose ReplacementCalloutComponent NamePreliminary ProceduresRemove the air cleaner outlet resonator assembly. Refer toAir Cleaner Outlet Resonator Re ...
