Chevrolet Equinox Service Manual: 3-5-Reverse and 4-5-6 Clutch Housing Disassemble Automatic Transmission Unit

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / 3-5-Reverse and 4-5-6 Clutch Housing Disassemble Automatic Transmission Unit

Table 1: Reluctor Wheel and Piston Removal
Table 2: Clutch Plate Removal
Table 3: 4–5–6 Clutch Hub Removal
Table 4: 4–5–6 Clutch Piston Removal

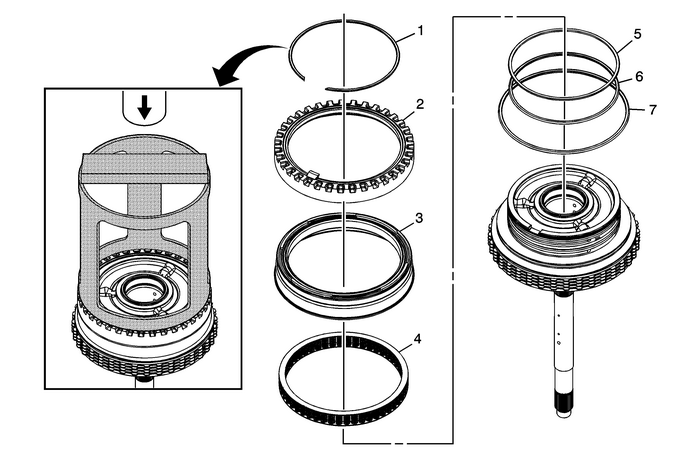

Reluctor Wheel and Piston Removal

3-5-Reverse and 4-5-6 Clutch Housing Disassemble Automatic Transmission Unit

Reluctor Wheel and Piston Removal

Callout

Component Name

1

A/Trans Input Shaft Speed Sensor Reluctor Ring Retaining Ring

Caution:Compress the reluctor wheel just enough to clear theretainer. Over compressing the reluctor wheel will break thealignment tab and the clutch housing.

Special Tools

DT-47694 Piston Spring Compressor

For equivalent regional tools, refer toSpecial Tools.

2

A/Trans Input Shaft Speed Sensor Reluctor Wheel

3

3–5 Reverse Clutch Piston

Note:Inspect piston seals for damage and/or wear. Piston is reusable.

4

3–5 Reverse Clutch Spring Assembly

5

3–5 Reverse Clutch Piston Inner Seal (Orange)

6

3–5 Reverse Clutch Piston Inner Seal (Black)

7

3–5 Reverse Clutch Piston Dam Seal

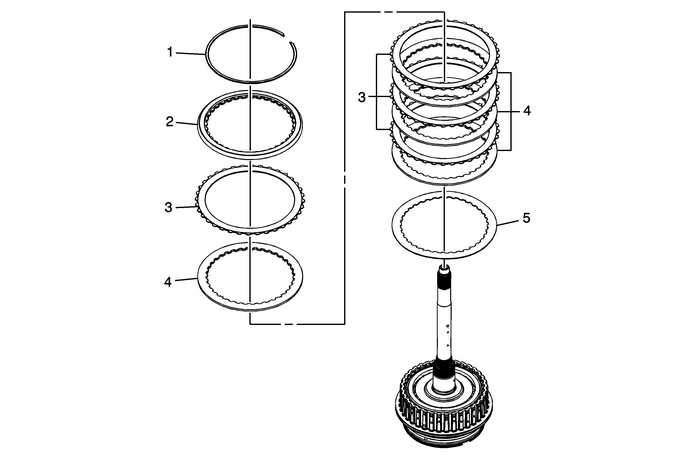

Clutch Plate Removal

3-5-Reverse and 4-5-6 Clutch Housing Disassemble Automatic Transmission Unit

Clutch Plate Removal

Callout

Component Name

1

3–5 Reverse Clutch Backing Plate Retaining Ring

2

3–5 Reverse Clutch Backing Plate

3

3–5 Reverse Clutch (w/Friction Material) Plate Assembly-(Qty: 4)

4

3–5 Reverse Clutch Plate-(Qty: 4)

5

3–5 Reverse Clutch (Waved) Plate

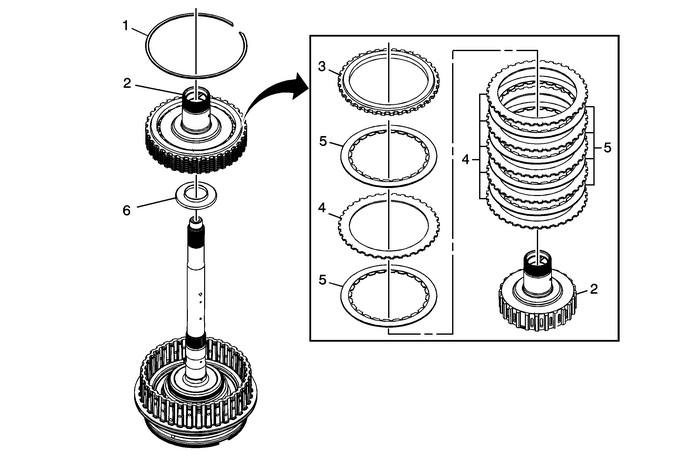

4–5–6 Clutch Hub Removal

3-5-Reverse and 4-5-6 Clutch Housing Disassemble Automatic Transmission Unit

4–5–6 Clutch Hub Removal

Callout

Component Name

1

4–5–6 Backing Plate Retaining Ring

Note:Gently push down on the backing plate to get enough clearance between the backingplate and retainer.

2

Reaction Carrier Hub Assembly

Note:The clutch plates will come out of the housing with the hub assembly.

3

4–5–6 Clutch Backing Plate

4

4–5–6 Clutch Plate (Qty: 6)

5

4–5–6 Clutch (w/Friction Material) Plate Assembly-(Qty:-6)

6

4–5–6 Clutch Hub Thrust Bearing Assembly

Note:The bearing may stick to the reaction carrier hub.

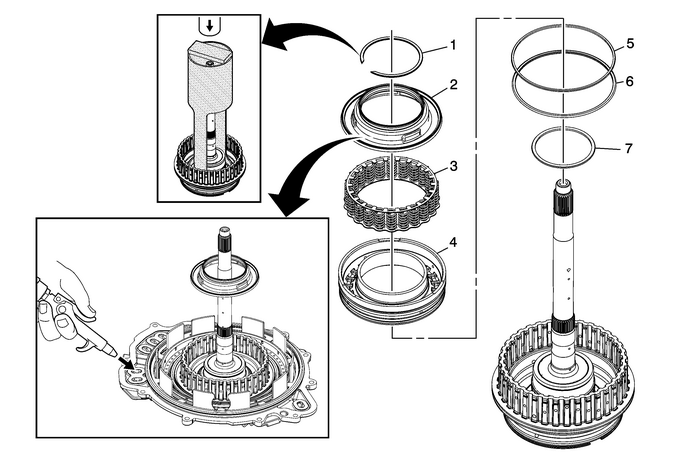

4–5–6 Clutch Piston Removal

3-5-Reverse and 4-5-6 Clutch Housing Disassemble Automatic Transmission Unit

4–5–6 Clutch Piston Removal

Callout

Component Name

1

4–5–6 Clutch Dam Retaining Ring

Special ToolsDT-47693 Dam ProtectorGE 8059 Snap Ring Pliers-Parallel Jawor equivalent

For equivalent regional tools, refer toSpecial Tools.

2

4–5–6 Clutch Piston Fluid Dam

Procedure:Place the 3–5–R and 4–5–6 clutch housing onto the case cover assembly.Apply shop air to the 4–5–6 clutch feed hole using a rubber tipped air gun to dislodgethe dam piston and the 4–5–6 clutch piston from the clutch housing.

3

4–5–6 Clutch Spring Assembly

4

4–5–6 Clutch Piston

5

4–5–6 Clutch Piston Outer Seal-(Stepped)

6

4–5–6 Clutch Piston Outer Seal-(Rounded)

7

4–5–6 Clutch Piston Inner Seal
