2-6 Clutch Plate Installation Automatic Transmission Unit

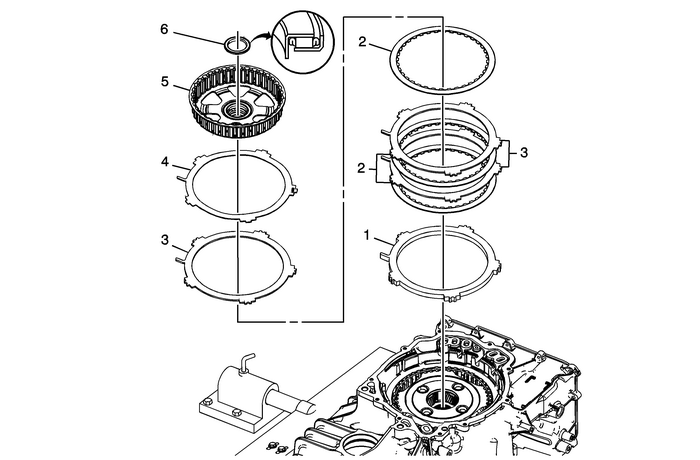

2-6 Clutch Plate Installation

Callout

Component Name

1

2–6 Clutch Backing Plate

Note:The tab on the clutch plate faces the bottom of the case.

2

2–6 Clutch (w/Friction Material) Plate Assembly-(Qty: 3)

3

2–6 Clutch Plate (Qty: 3)

Note:The tab on the clutch plate faces the bottom of the case.

4

2–6 Clutch Cushion Spring

5

Reaction Sun Gear Assembly

6

2–6 Clutch Hub Thrust Bearing Assembly

Note:Note location of the orientation lip on bearing. All thrust bearings can only be assembledone way.
