Water Pump and Balance Shaft Chain Tensioner Replacement Engine Block Cylinder Block Balance Shaft

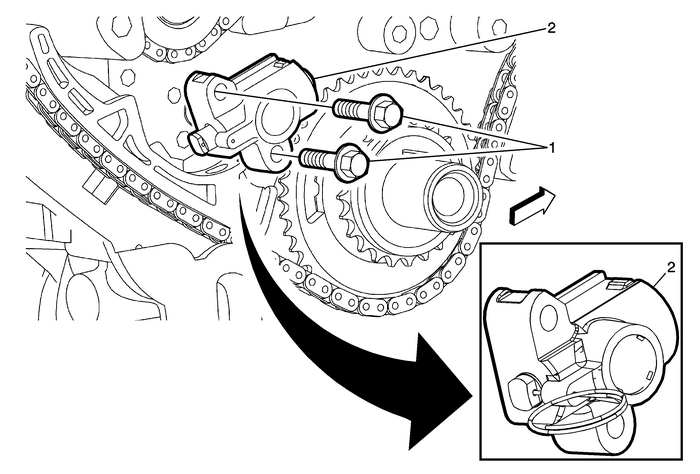

Water Pump and Balance Shaft Chain Tensioner Replacement

Callout

Component Name

Preliminary Procedure

Remove the engine front cover. Refer toEngine Front Cover Replacement.

1

Water Pump and Balancer Shaft Chain Tensioner Fastener (Qty:-2)

Caution:Refer toFastener Caution.

ProcedureRotate the tensioner plunger counterclockwise and push the tensioner pin in the tensionerbody.Rotate the tensioner plunger clockwise and secure the tensioner plunger with a positioningpin. Install the tensioner.Remove the positioning pin.Tighten

10-Y (89-lb-in)

2

Balancer Chain Adjustable Guide

Water Pump and Balance Shaft Chain Crankshaft Sprocket Replacement Engine Block Cylinder Block Crankshaft Sprocket
Water Pump and Balance Shaft Chain Crankshaft Sprocket ReplacementCalloutComponent NamePreliminary ProcedureRemove the water pump and balancer shaft chain. Refer toWater Pump and Balance Shaft Chain R ...
