Water Pump and Balance Shaft Chain and Tensioner Removal Engine Block Cylinder Block Balance Shaft

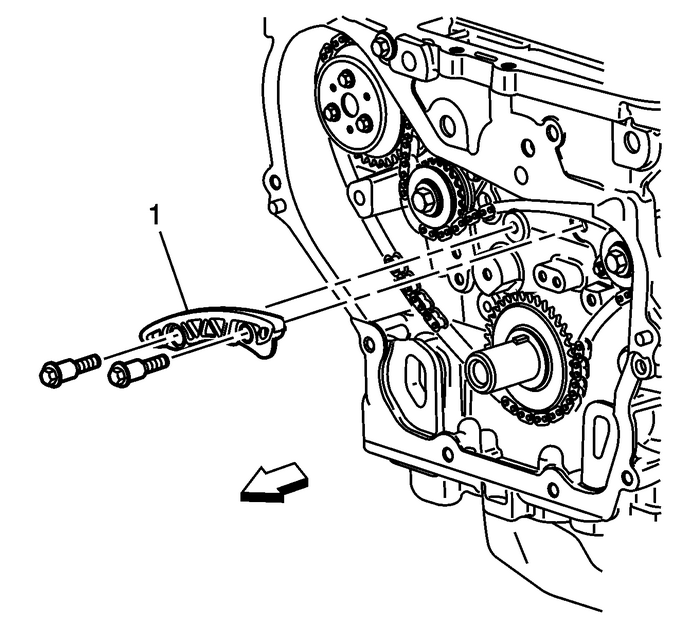

Remove the balance shaft drive chain tensioner bolts.Remove the balance shaft drive chaintensioner-(1).

Water Pump and Balance Shaft Chain and Tensioner Removal Engine Block Cylinder Block Balance Shaft

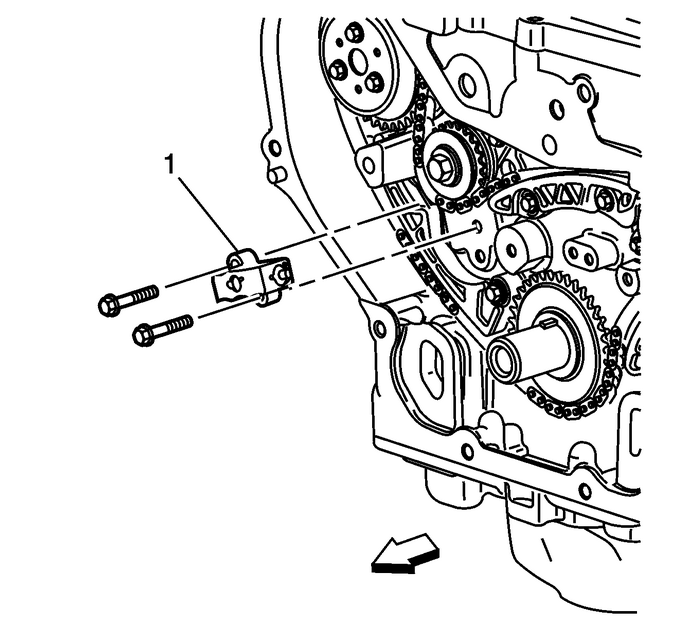

Remove the adjustable balance shaft chain guide bolt.Remove the adjustable balance shaft chainguide-(1).

Water Pump and Balance Shaft Chain and Tensioner Removal Engine Block Cylinder Block Balance Shaft

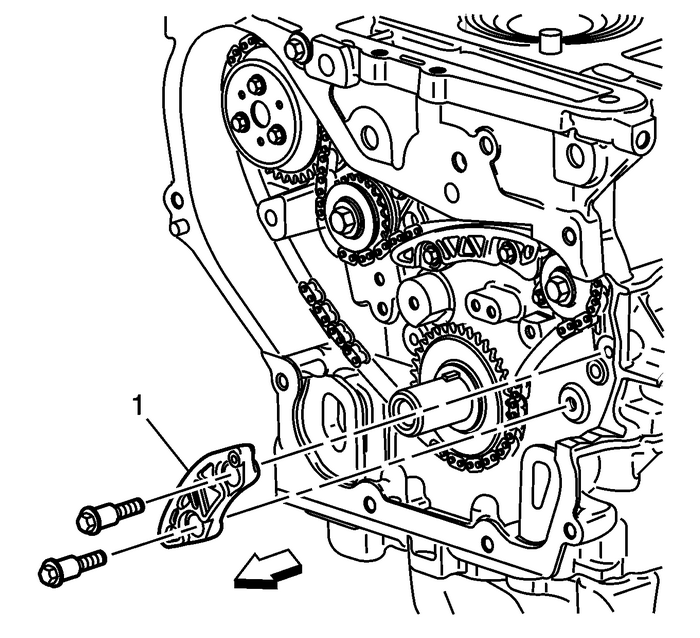

Remove the small balance shaft drive chain guidebolts.Remove the small balance shaft drive chainguide-(1).

Water Pump and Balance Shaft Chain and Tensioner Removal Engine Block Cylinder Block Balance Shaft

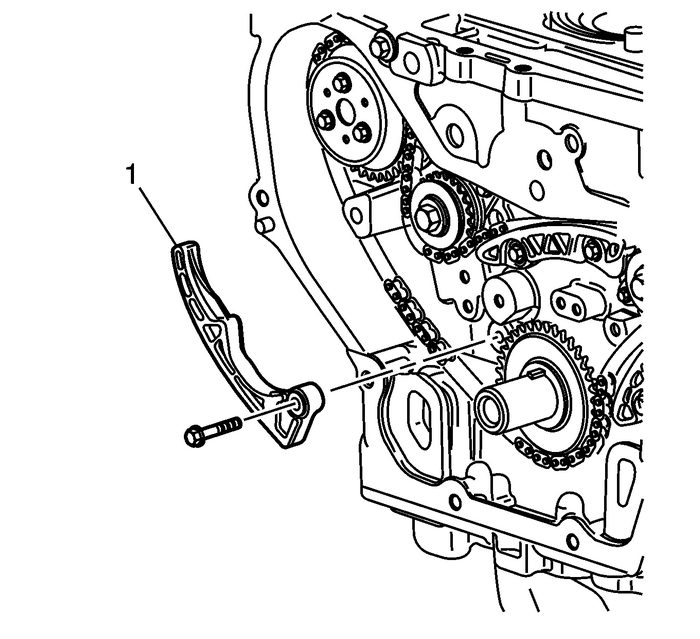

Remove the upper balance shaft drive chain guidebolts.Remove the upper balance shaft drive chainguide-(1).

Water Pump and Balance Shaft Chain and Tensioner Removal Engine Block Cylinder Block Balance Shaft

Note:It may ease removal of the balance shaft drive chain to getall of the slack in the chain between the crankshaft and water pumpsprockets.

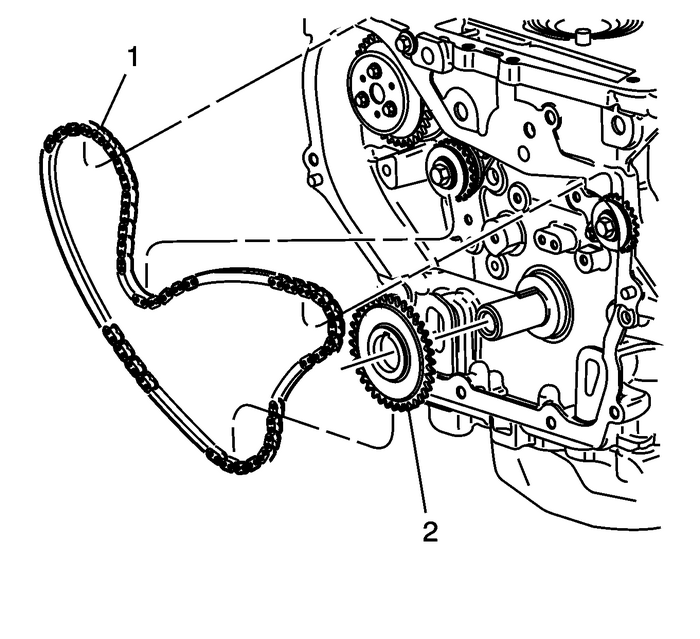

Remove the balance shaft drive chain-(1).Remove the balance shaft drivesprocket-(2).
Engine Front Cover and Oil Pump Removal Engine Block Cylinder Block Cyl Block Front Cover
Remove the accessory drive belt tensioner bolt.Remove the accessory drive belttensioner-(1).Remove the engine front cover bolts-(1).Remove the long water pump bolt.Remove the engine front cover-(1) an ...

Lower Crankcase Removal Engine Block Cylinder Block
Remove the bedplate perimeter bolts-(3).Note:Do not forget the 2-outside rearbolts-(4).Remove and discard the crankshaft bearingbolts-(2).Using the pry-points and an appropriate prying tool, gentlysep ...
