Driver or Passenger Seat Cushion Heater Replacement Seats

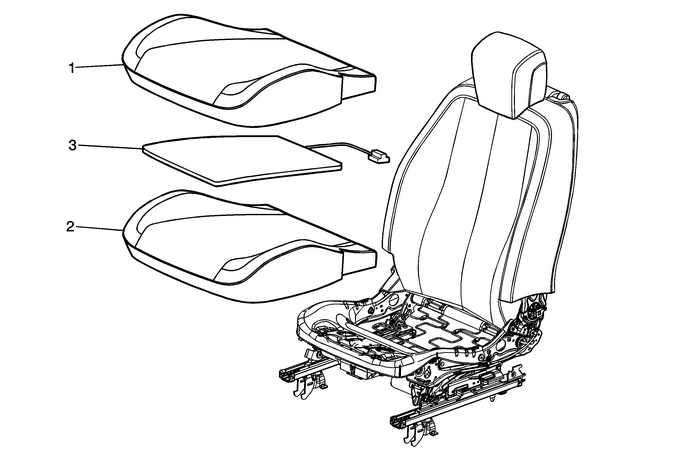

Driver or Passenger Seat Cushion Heater Replacement

Callout

Component Name

Preliminary ProcedureRemove the driver or passenger seat. Refer toDriver or Passenger Seat Removal and Installation.Remove the front seat cushion cover and pad. Refer toFront Seat Cushion Cover and Pad Replacement.

1

Driver or Passenger Seat Cushion Cover

Procedure

Separate the seat cushion from the seat cushion pad.

2

Driver or Passenger Seat Cushion Pad

3

Driver or Passenger Seat Cushion Heater

ProcedureDisconnect the electrical connector.Remove the seat belt buckle pretensioner electrical wire from the seat cushion cover.Remove the heater element leaving the old adhesive strips intact on the seat cushiontrim. The new seat heater adhesive strips will be placed over the old adhesive strips.The front passenger cushion heater element is integral to the pad and inflatable restraintpassenger presence sensor. Refer toAirbag Front Passenger Presence Sensor Replacement.
