Fuel Tank Filler Pipe Housing Replacement (Terrain) Fuel System

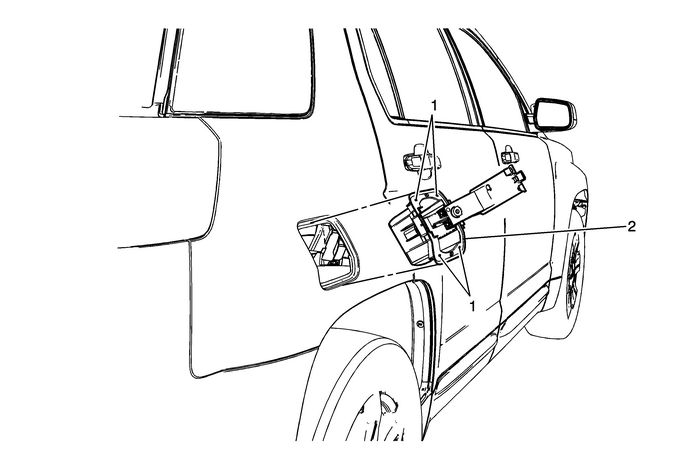

Fuel Tank Filler Pipe Housing Replacement

Callout

Component Name

Preliminary ProceduresRemove the rear wheelhouse panel liner. Refer toRear Wheelhouse Liner Replacement.Remove the fuel tank filler door. Refer toFuel Tank Filler Door Replacement.

1

Fuel Tank Filler Pipe Housing Retainer(Qty:-4)

Procedure

Release the 4 filler pipe housing retainers on the back ofthe housing.

2

Fuel Tank Filler Pipe Housing

Procedure

Press the fuel tank filler housing outward from the fuelfiller pipe and the quarter panel.
